B4.2 Install & Operation Manual

Share Manual Go back
Go back

Safety

This appliance can be used by adults and children aged 8 and above, as well as people with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, as long as they have been given instruction or supervision concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be conducted by children.

The appliance shall only be maintained and repaired by authorized technicians who are properly trained and certified. The appliance should be isolated from the electricity supply before removal of any covers. Great care must be employed when working with high pressure carbon dioxide, and in no cases should the maximum operating pressure of 0.4MPa (4 bar) be exceeded.

  • The appliance must be placed upright on a flat horizontal surface.
  • The appliance must be kept away from sunlight, heat and moisture.
  • The appliance should not be placed in locations of egress or where it may obstruct exit access.
  • The appliance must be installed in an environment free of dust and corrosive/explosive gases.
  • The appliance is not suitable for installation in an area where a water jet could be used.
  • The appliance must not be installed where it is liable to freeze. If the unit is thought to be frozen it must not be switched on.
  • The appliance is not intended for heavy industrial use or continuous high-demand applications beyond its specified capacity.
  • The appliance must only be used for dispensing potable (drinkable) water.
  • The appliance must not be used for any purpose other than that for which it is intended.
  • The appliance must be installed with a waterblock set to setting "2" (John Guest) or 10L equivalent. Installing without a waterblock will invalidate warranty.
  • The appliance must have adequate ventilation. Including a 150mm space at the rear for adequate cooling capability.

WARNING: Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
WARNING: Increased risk of a leak could occur through improper handling, movement or use.

The appliance must be installed in accordance with the relevant requirements of:

  • The appropriate building regulations by application of either The Building Regulations (England and Wales), The Building Regulations (Scotland) or The Building Regulations (Northern Ireland). In territories other than those listed the local regulations in force must be complied with.
  • The Water Supply (Water Fittings) Regulations (England, Wales and Northern Ireland) or The Water Byelaws in Scotland.

This appliance is designed for dispensing drinking water in commercial and workplace environments, including:

  • Offices and corporate workplaces
  • Factories and industrial staff welfare areas
  • Hotels, hostels, and other hospitality environments
  • Public buildings such as schools, hospitals, and leisure facilities

The appliance is suitable for providing chilled and/or heated potable drinking water for employees, visitors, and guests. This appliance may also be used in household and similar applications, where applicable, but is primarily intended for light commercial use. The appliance is intended for indoor use only and must be installed and operated in accordance with the instructions provided in this manual.

Safe transportation
  • The appliance is susceptible to impact and requires careful handling to prevent damage or breakage during transportation.
  • The appliance should be kept in an upright position and should not be tilted during transit and/or storage to prevent damage.
  • The appliance is vulnerable to moisture and should be protected from rain and water.
R600 Safety Message

R600a is a refrigerant-grade isobutane used on a wide range of commercial refrigeration and air conditioning units. A highly pure isobutane, it has a low environmental impact and nominal global warming potential (GWP), meaning it possesses no qualities that can destroy the ozone layer. R600a also is the preferred hydrocarbon alternative of the Environmental Protection Agency (EPA), substituting more harmful fluorocarbon refrigerants like R22, R134a, R404a and R502. Units with R600a can only be maintained and repaired by authorised technicians who are properly trained and certified.

Waste electrical products

As a Producer under the UK WEEE Regulations, Borg and Overström complies with its Producer Obligations by being registered as a member of a WEEE Compliance Scheme and holding a WEEE Producer Registration Number. This product is designed and manufactured with materials that can be recycled and reused. The symbol means the product should be disposed of separately from household waste at the end of its life.
Producer WEEE registration number: WEE/KG0136ZT

Specification

Product specifications

230V

115V

Water options

Chilled, Sparkling, Ambient and Hot
*Your water options will vary depending on your model.

Chilled, Sparkling, Ambient and Hot
*Your water options will vary depending on your model.

System

Direct Chill cooling system
Superior to the gravity fed Reservoir system, Direct Chill technology chills water on demand for the ultimate drinking experience.

Direct Chill cooling system
Superior to the gravity fed Reservoir system, Direct Chill technology chills water on demand for the ultimate drinking experience.

Technology

DeepSparkle (select models only)
Sparkling water with long lasting fizz

Integrated cup dispenser
Compatible with paper cups: 463428

DeepSparkle (select models only)
Sparkling water with long lasting fizz

Integrated cup dispenser
Compatible with paper cups: 463428

Operational Controls

Capacitive touch panel controls.

Capacitive touch panel controls.

Dispense height

270mm

10.63"

Dimensions

Countertop
W320 x D440 x H415mm

Floorstanding
W320 x D440 x H1325mm

Countertop
W12.6 x D17.3 x H16.3"

Floorstanding
W12.6 x D17.3 x H52.2"

Power supply

230-240V~ AC (50Hz)

110-120V~ AC (60Hz)

Fuse rating

10A

10A

Chilled & Sparkling temperature

From 2°C

From 37°F

Chilled & Sparkling capacity

35L/h

9.25 US Gal/h

Hot temperature

Up to 92°C

Up to 198°F

Hot tank volume

1.75 Litres

0.46 US gallon

Hot tank capacity

6L/h

1.58 US Gal/h

Maximum running power consumption

Chilled and ambient
0.1kW at 230v

Chilled, ambient and sparkling
0.14kW at 230v

Chilled, ambient and hot
0.55kW at 230v

Chilled, sparkling and hot
0.64kW at 230v

Chilled and ambient
0.1kW at 110v

Chilled, ambient and sparkling
0.14kW at 110v

Chilled, ambient and hot
0.6kW at 110v

Chilled, sparkling and hot
0.66kW at 110v

Rated current

Chilled and ambient
0.43A at 230v

Chilled, ambient and sparkling
0.61A at 230v

Chilled, ambient and hot
2.7A at 230v

Chilled, sparkling and hot
3.1A at 230v

Chilled and ambient
0.87A at 110v

Chilled, ambient and sparkling
1.27A at 110v

Chilled, ambient and hot
5.2A at 110v

Chilled, sparkling and hot
5.7A at 110v

Refrigeration gas

R600a

R600a

Weight

Max
22.9kg

Max
50.5lbs

Water inlet connection

1/4" PF

1/4" PF

Inlet water temperature

Up to 25°C

Up to 77°F

Inlet water pressure

Min
0.11 MPa (1.1 bar)

Max
0.55 MPa (5.5 bar)

Min
16psi (0.11 MPa)

Max
80psi (0.55 MPa)

CO2 connection

1/4” Push Fit

1/4” Push Fit

CO2 pressure

Max
0.4MPa (4 Bar)

Max
58psi (0.4MPa )

Room operating temperature

Min
16°C

Max
43°C

Min
61°F

Max
109°F

Climatic class

T

T

Pre-installation information

Prior to installing the B4 dispenser, ensure the following requirements are met:

  • 10A rated (minimum) socket outlet, within reach of the 1.8m/71"power cable length supplied. Ensure circuit meets the electrical supply and load requirements, according to the model type.
  • 150mm free space behind the unit.
  • Mains supply potable water within a 2.0m/78" connection pipe run length of the unit.
  • Mains waste connection or waste kit. (optional)

What's in the box

Installation kits and filters are NOT included, and are supplied as extra items according to individual ordering requirements.
Shop now

B4.2 water dispenser

Contents:

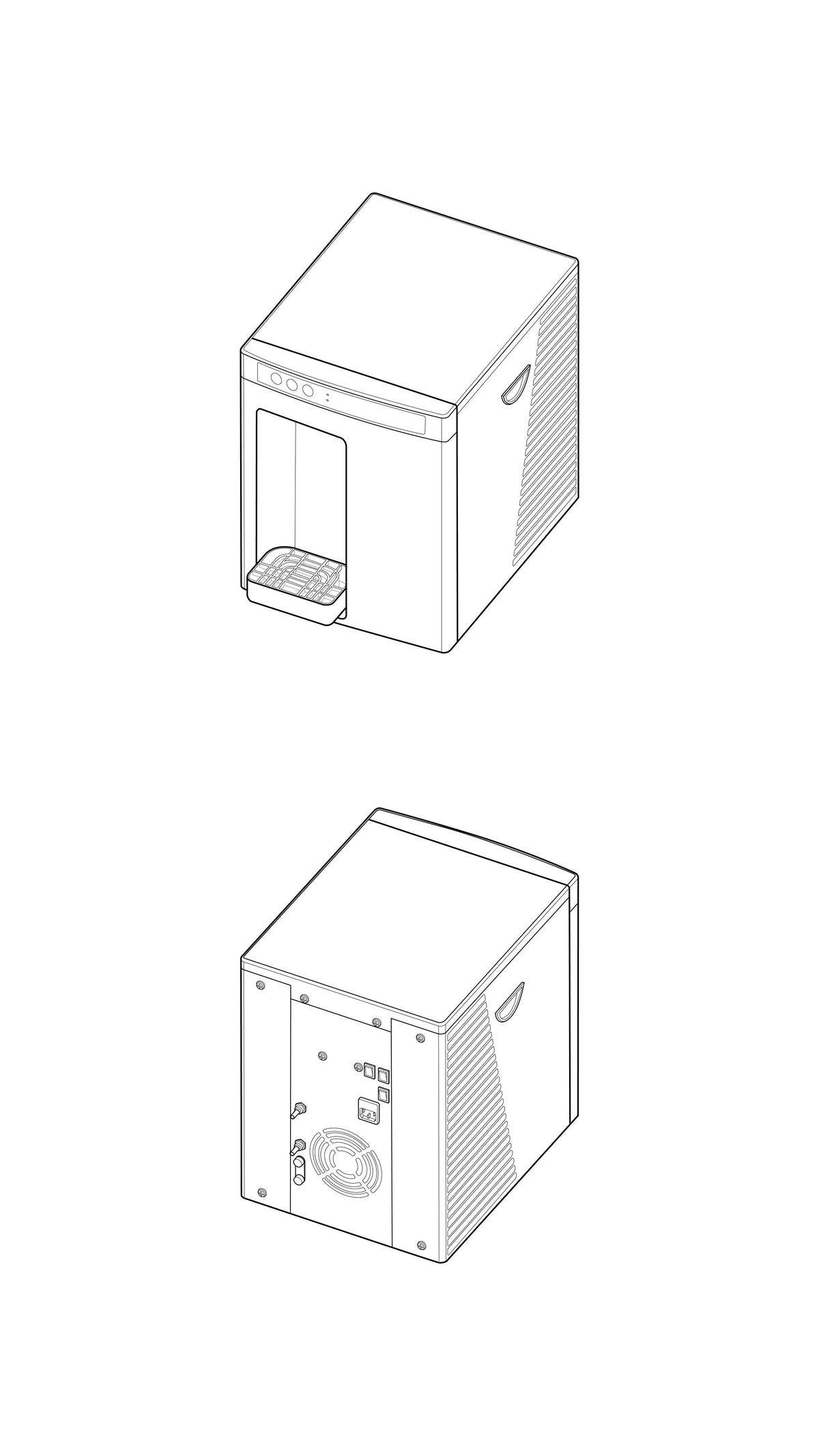

1 x B4 unit
1 x Power cord set
1 x Drip tray and cover
1 x User guide
1 x Sparkling installation kit (sparkling models only)

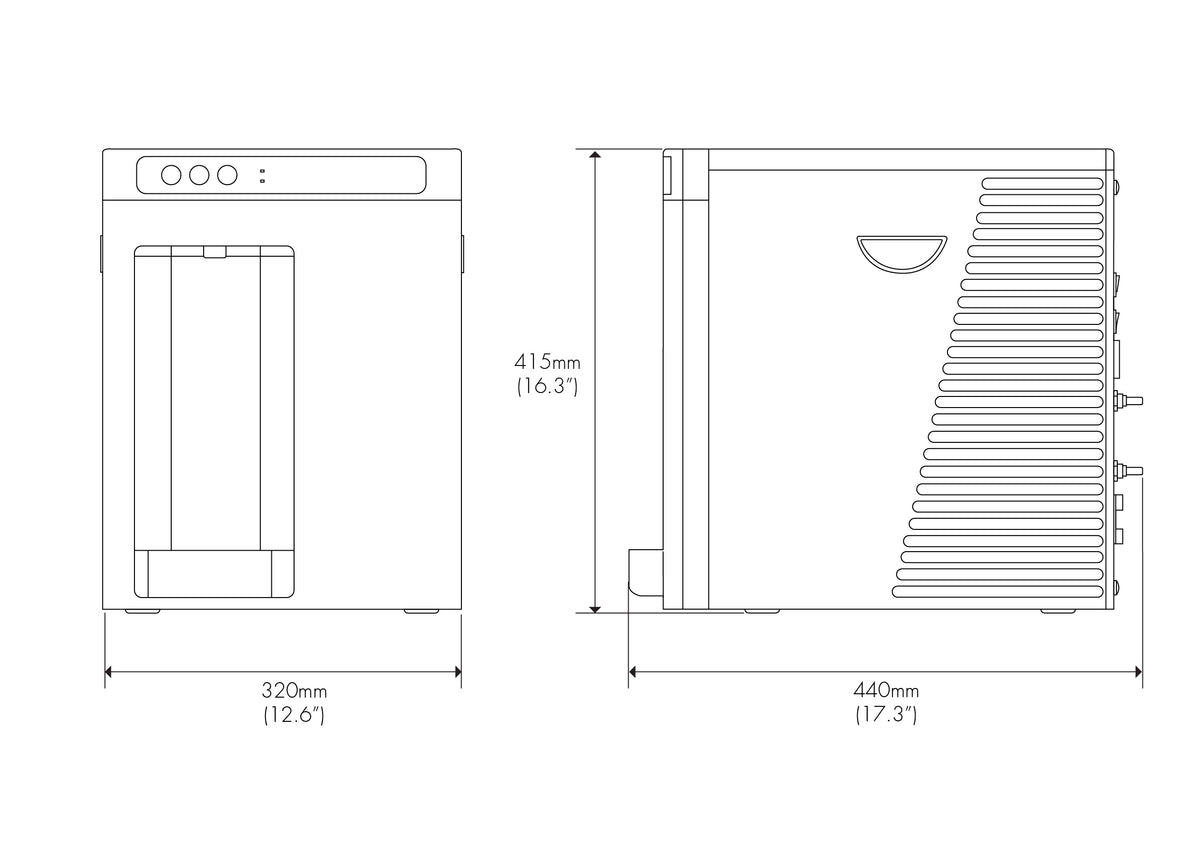

Countertop dimensions

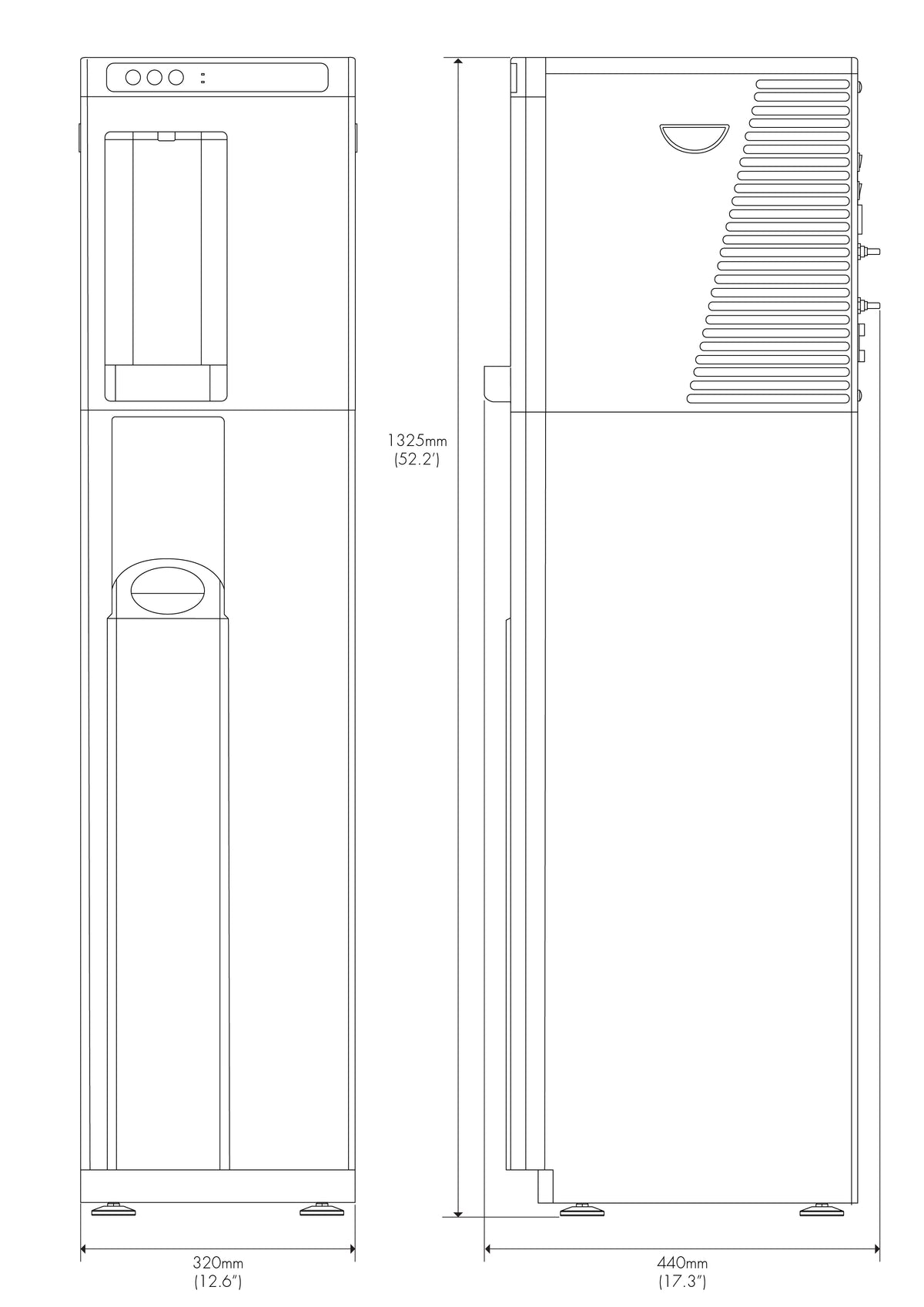

Floorstanding dimensions

How-to-install video

Installation

Identify a suitable location for the appliance. It should be positioned within 2.0m of suitable services connections. Allow 15cm of free space at the rear for ventilation.

We recommend using an installation kit, which includes everything needed to complete the installation.

A water block must be installed alongside each unit, and set to setting '2'. Failure to do so will invalidate the warranty for that unit. These are included within our installation kits.
Shop Water blocks

Installation requirements

230V

115V

Inlet water pressure

Min
0.11 MPa (1.1 bar)

Max
0.55 MPa (5.5 bar)

Min
16psi (0.11 MPa)

Max
80psi (0.55 MPa)

Room operating temperature

Min
16°C

Max
43°C

Min
61°F

Max
109°F

CO₂

Food grade (E290) CO₂ to be supplied

Food grade (E290) CO₂ to be supplied

Electricity

230v/50Hz
10A supply - Earth Leakage Protected

120v/60Hz
10A supply - Earth Leakage Protected (For USA & Canada, the supply must be protected by a ground-fault circuit interrupter (GFCI))

Waste

Mains waste connection or waste kit. (Bluetooth not compatible)

Mains waste connection or waste kit. (Bluetooth not compatible)

You will need:

  • Installation kit, including water block and filter. Your kit will depend on your requirements and model. See installation kit guide here.
  • John Guest pipe cutters
  • Side cutters
  • Screwdriver
  • 1L measuring jug

Countertop or Floorstanding?

The first step of your installation will depend on your water dispenser. If you have a countertop dispenser, begin with Section 1a. If you have a floorstanding dispenser, proceed directly to Section 1b.

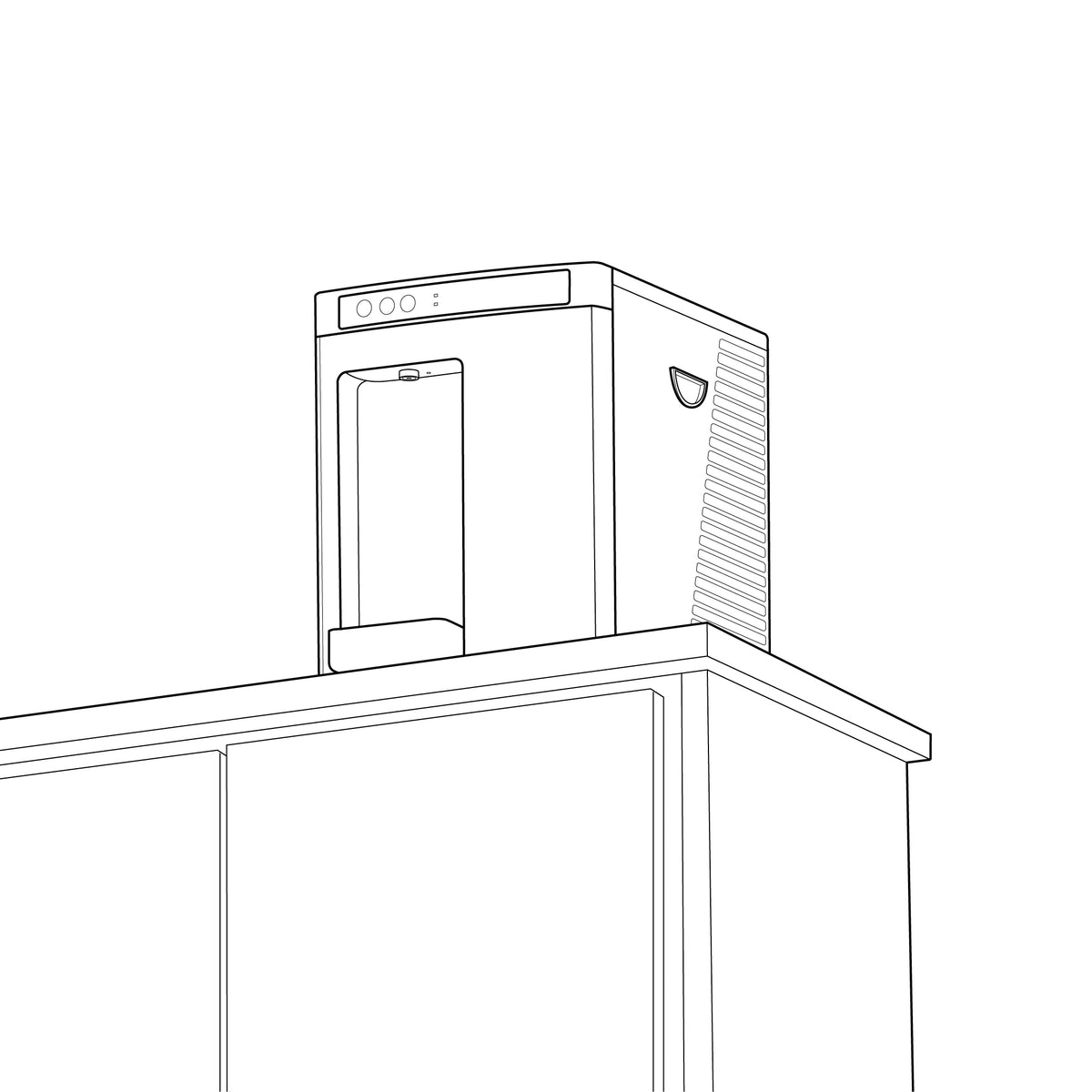

Countertop B4 water dispenser

To install a countertop B4 water dispenser, follow Section 1a.

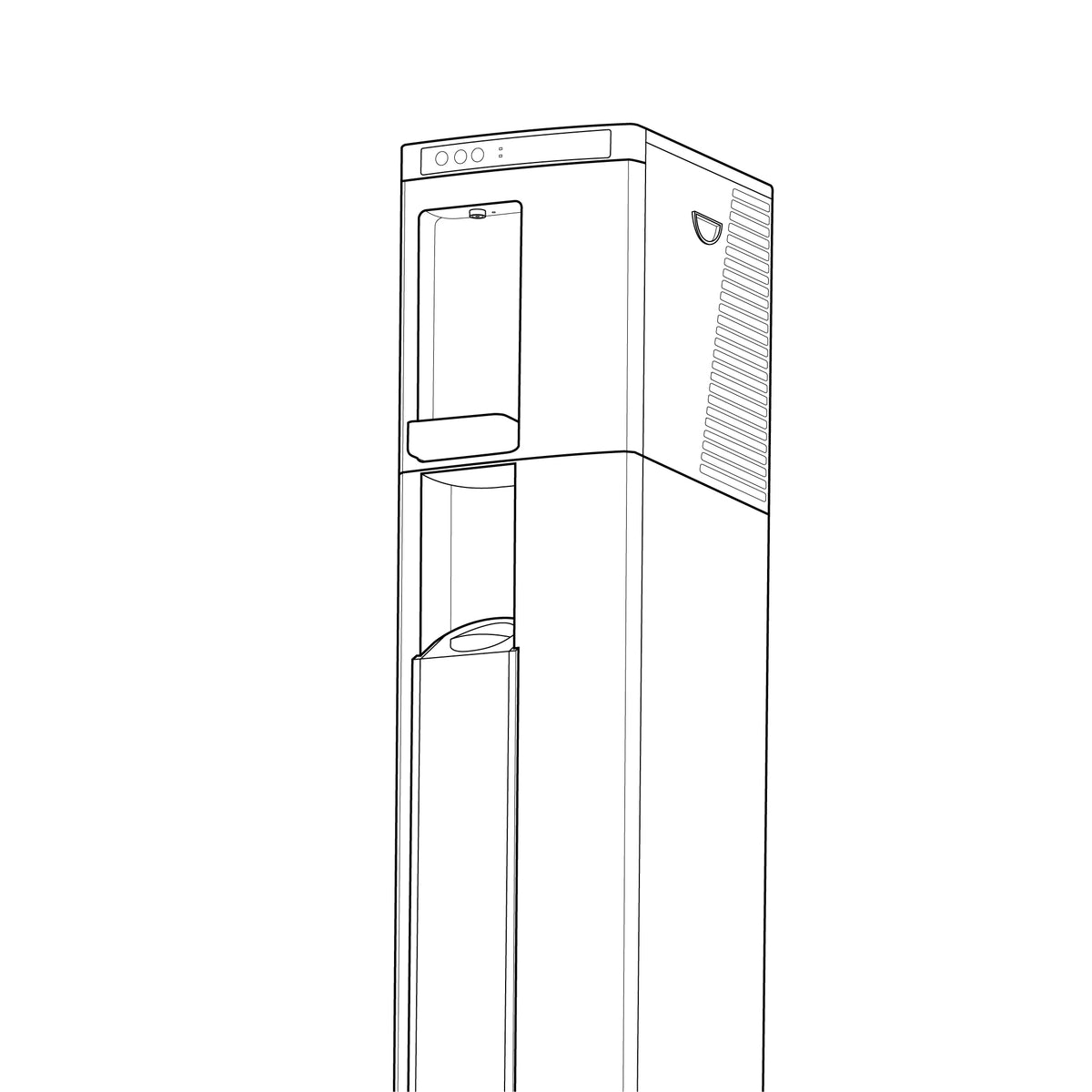

Floorstanding B4 water dispenser

To install a floorstanding B4 water dispenser, follow Section 1b.

Section 1a: Installing a countertop dispenser

1

This operation must only be carried out by trained staff.

2

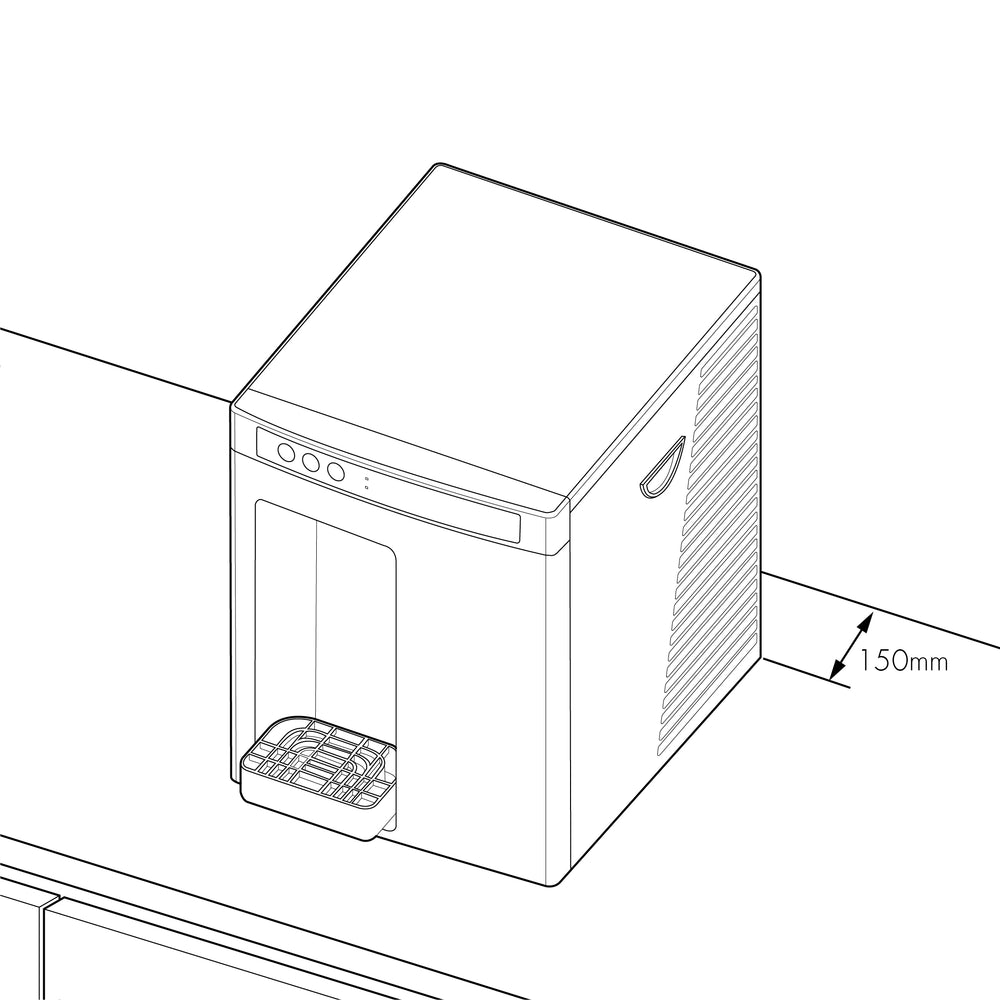

Position the unit in the desired location, ideally against a wall and away from areas of egress. Allow 150mm (6") of clearance at the rear of the unit for ventilation.

3

Install the water block. Use the supplied key to set the water block pointer to "2". Do not leave it at setting 8. Failing to do so will invalidate the warranty for that unit.
Vertical orientation recommended, where possible

4

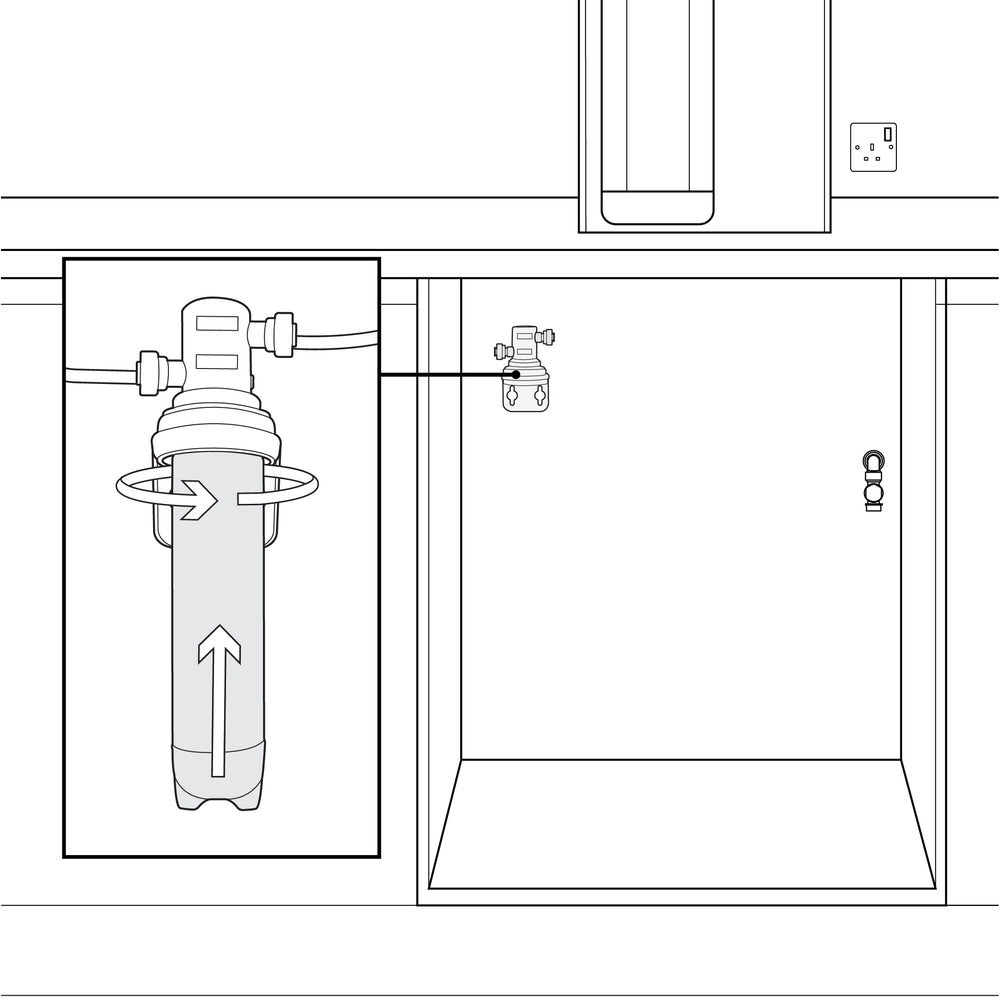

Fix the filter head in an accessible position. Ensure there is enough space below to install the filter.

5

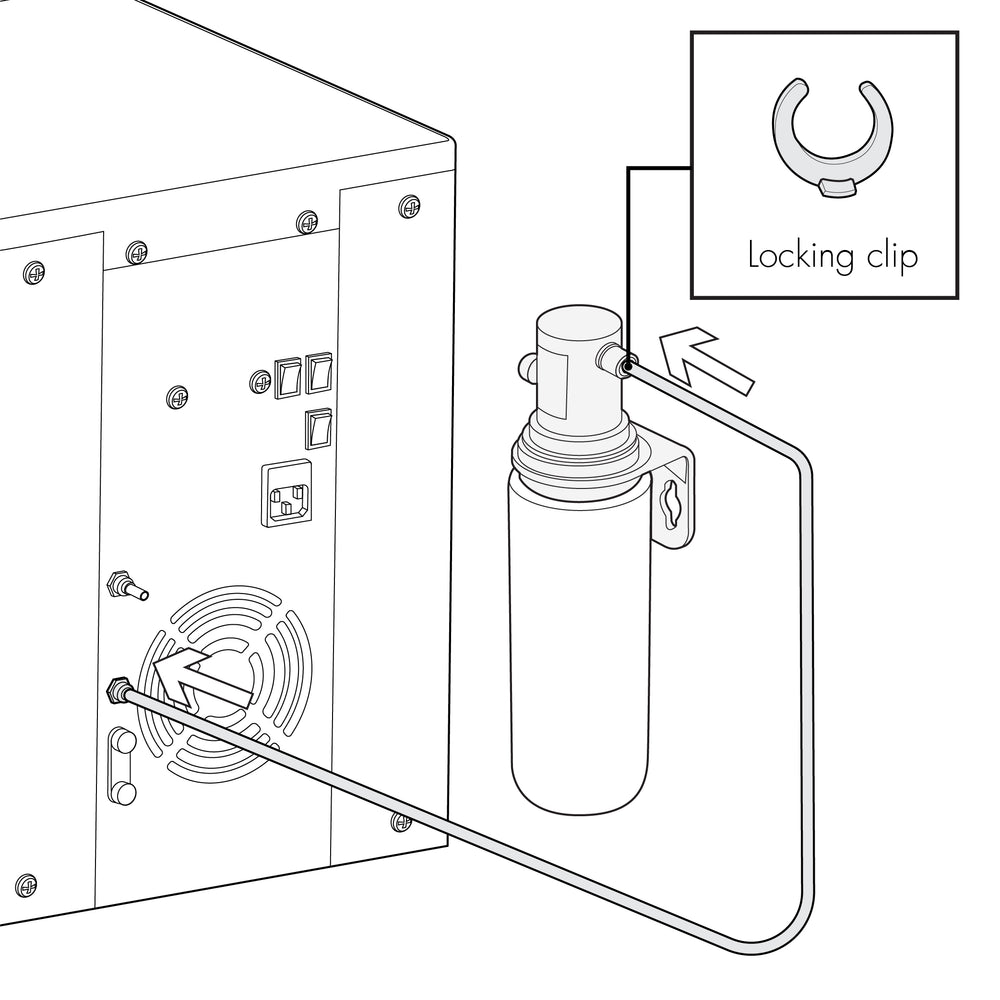

Using 1/4 inch tubing, connect the outlet option of the filter head to the appliance using the push-fit connections.

6

Then connect the inlet option of the filter head to the mains water supply, through the water block. Use locking clips on each connection for security.

7

If you have a sparkling model, complete the CO2 installation section below before moving on to the next step.

8

Turn on the water supply.

9

Connect the unit to the electricity supply. Do not turn on any of the rear switches yet. You should hear the direct chill system filling up.

10

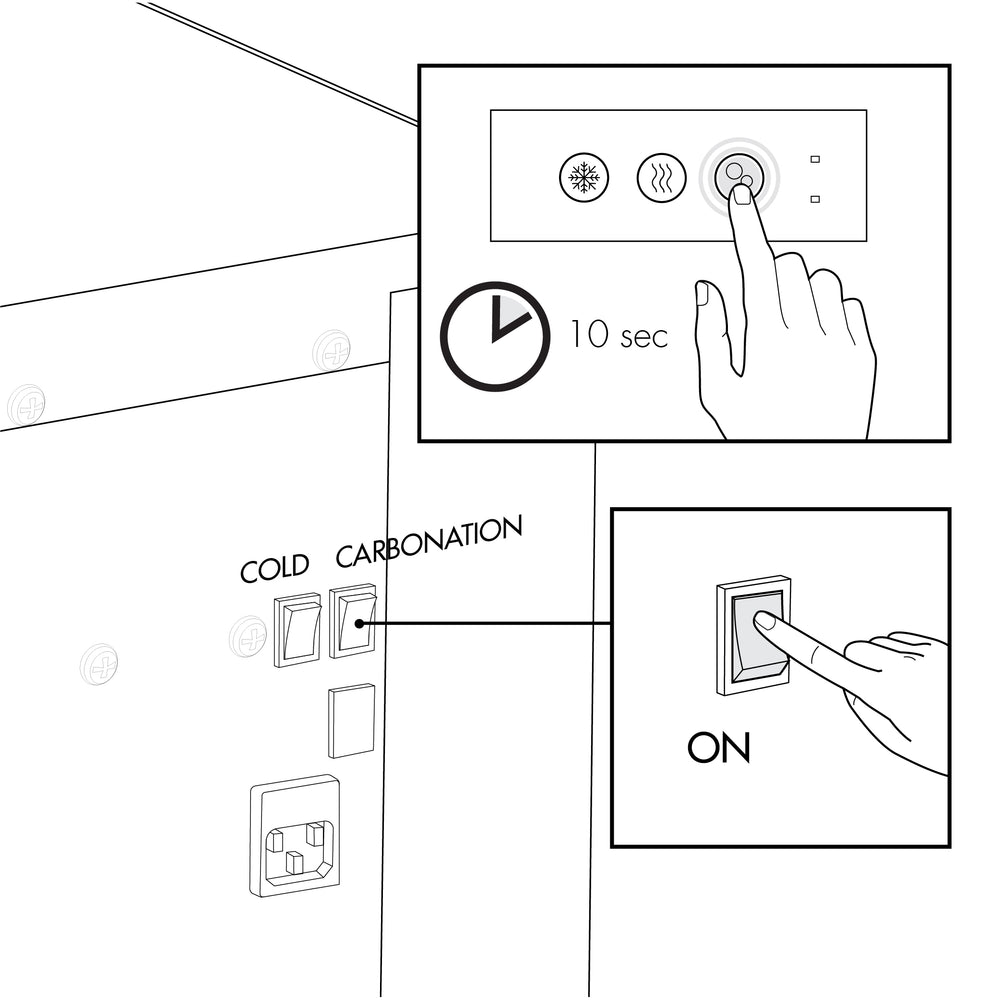

For sparkling models with CO2 connected, purge the air from the carbonator by pressing and holding the sparkling water dispense icon for 10 seconds. Then turn on the carbonation switch on the rear of the unit.

11

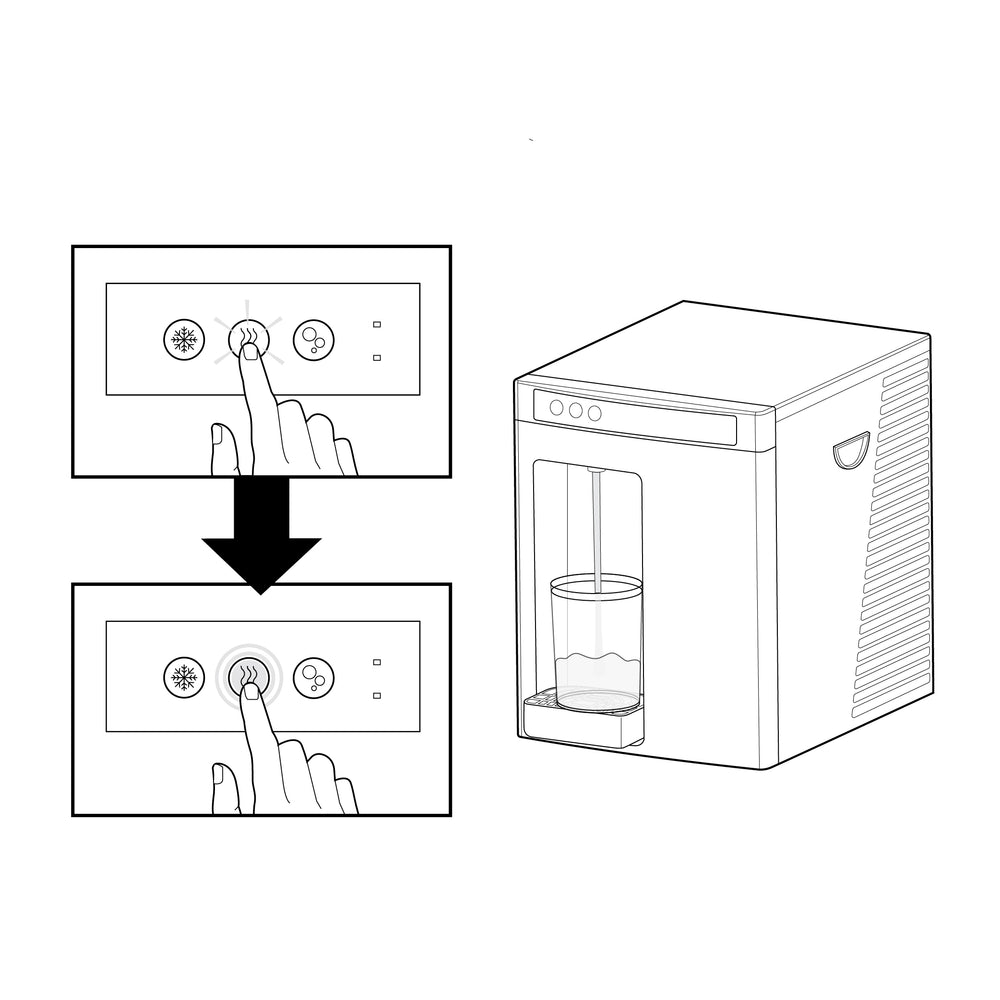

For hot water models we must commission the hot tank. Double press and hold the 'Hot' icon to start filling the hot tank. Continue filling until water flows from the outlet.

12

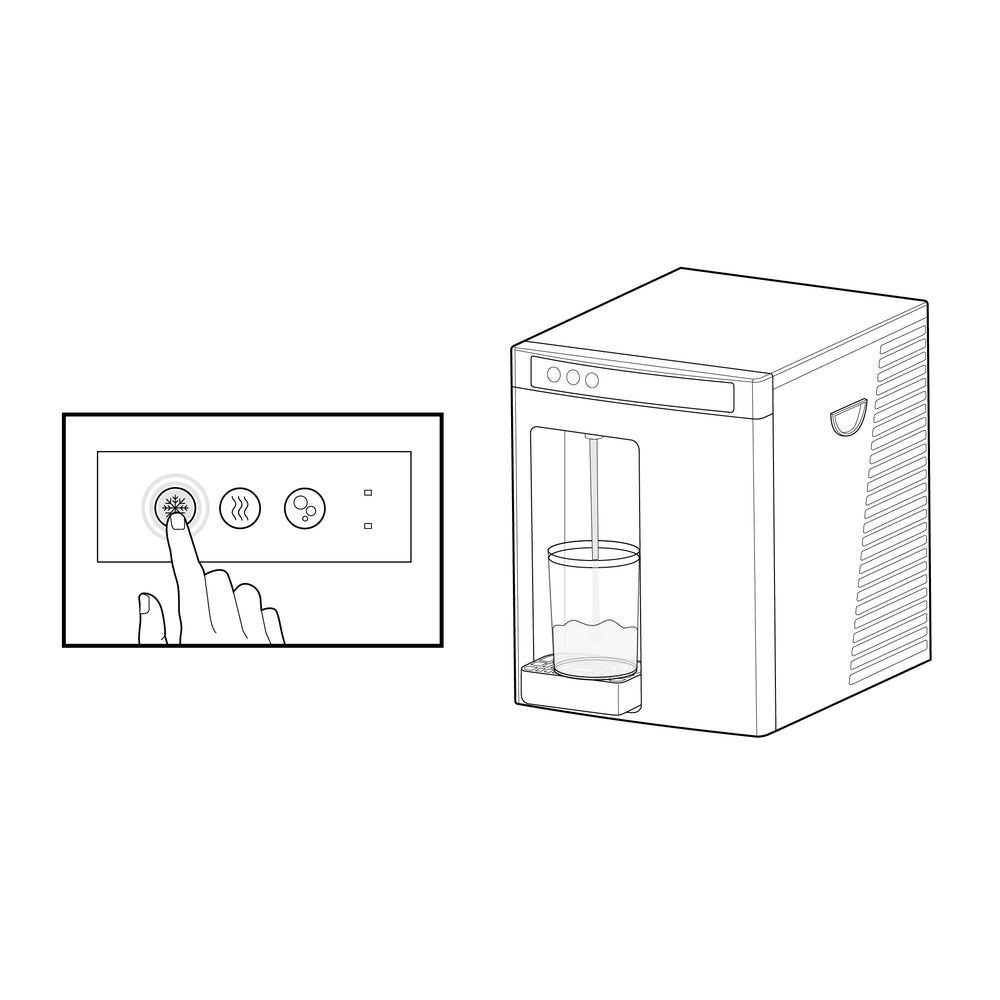

Press and hold the 'Chilled' icon until you see water dispensing from the outlet.

13

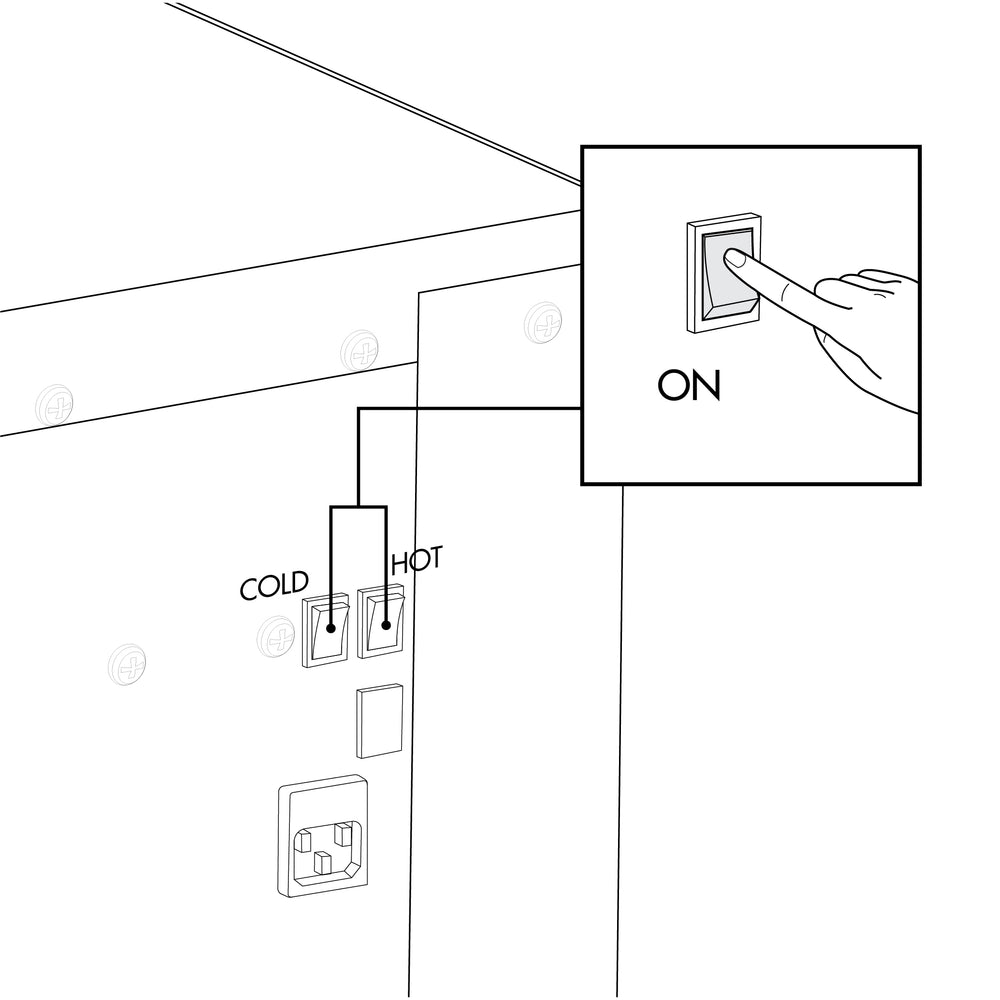

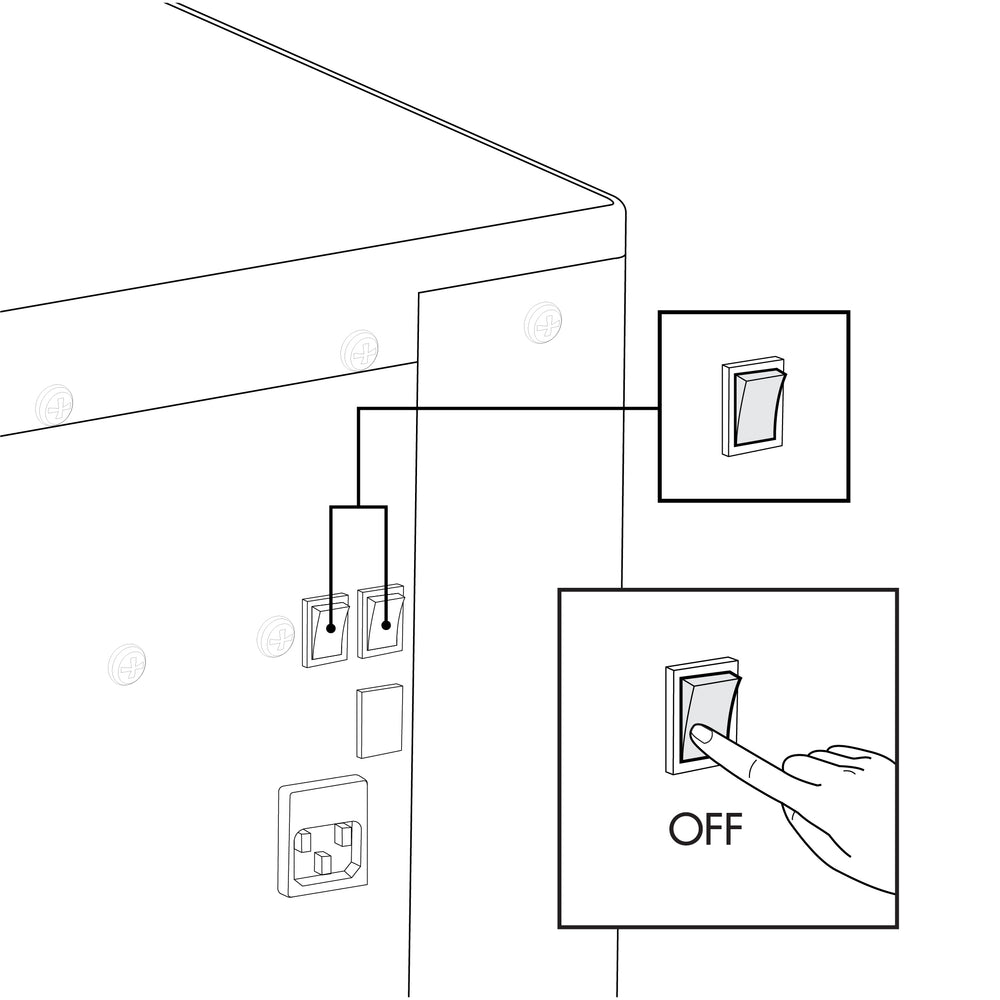

You can now turn on the hot switch and cold switch on the back of the dispenser. The chilling system and hot tank is now fully active.
Please note, CSH units may not have a cold switch.

14

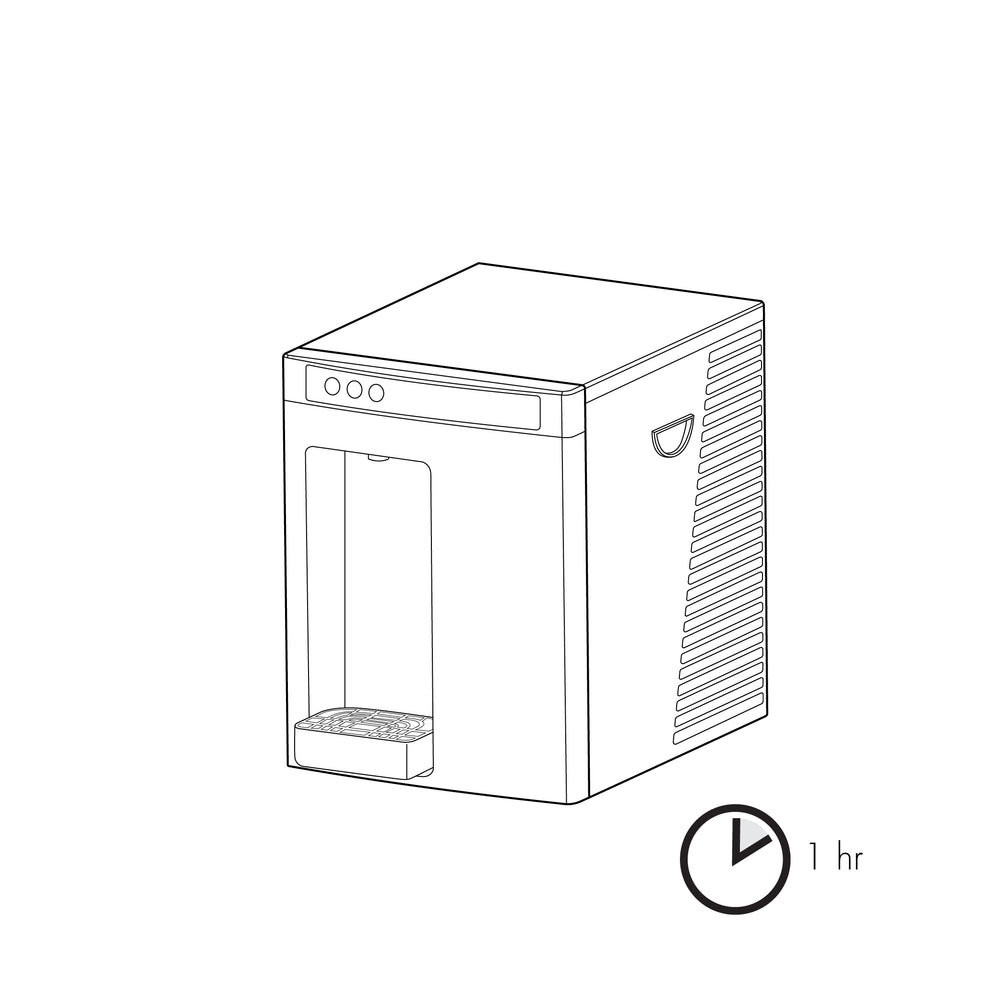

Allow the dispenser to stand for approximately 1 hour for the initial chilling/heating process to complete.

15

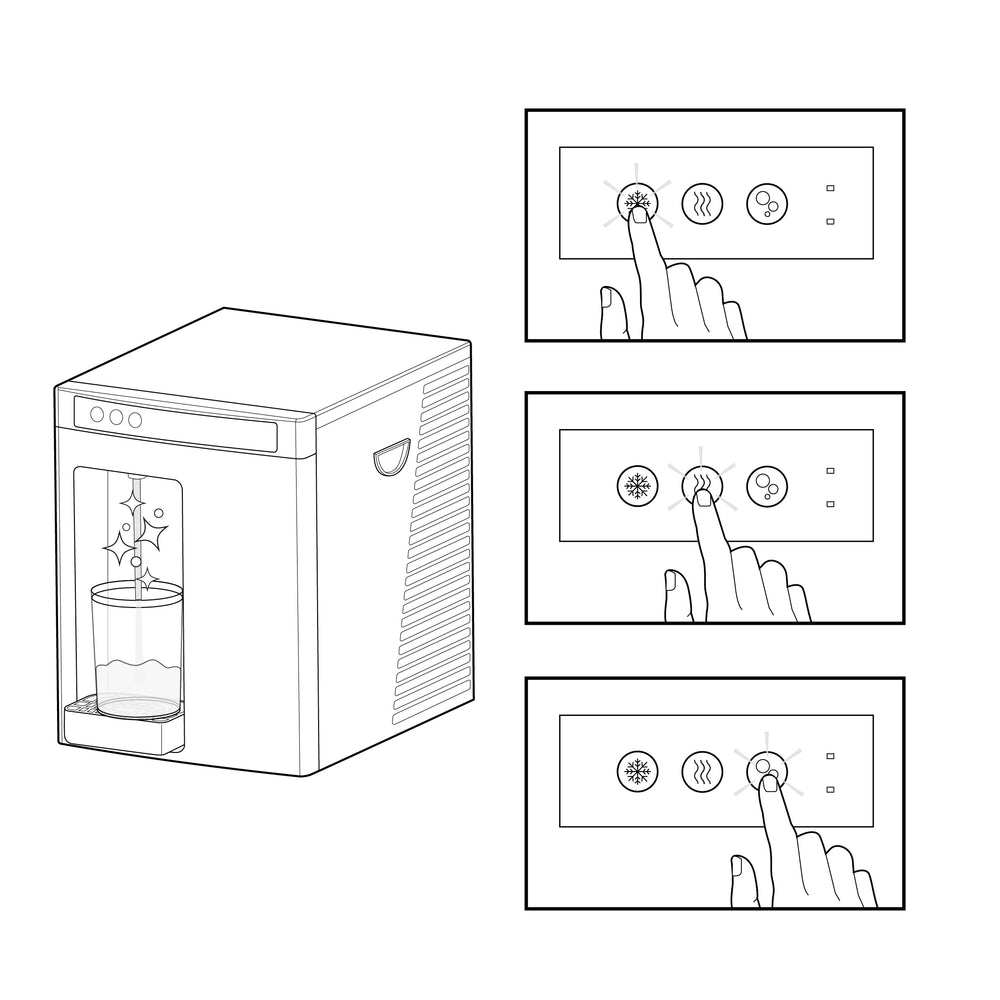

Flush water through each dispense option by pressing the dispense icons until water is dispensed. Ensure everything functions correctly.

16

We recommend that the unit undergoes a sanitisation procedure prior to first use. You can follow the instructions below. Your unit is now ready for use.

Section 1b: Installing a floorstanding dispenser

1

This operation must only be carried out by trained staff.

2

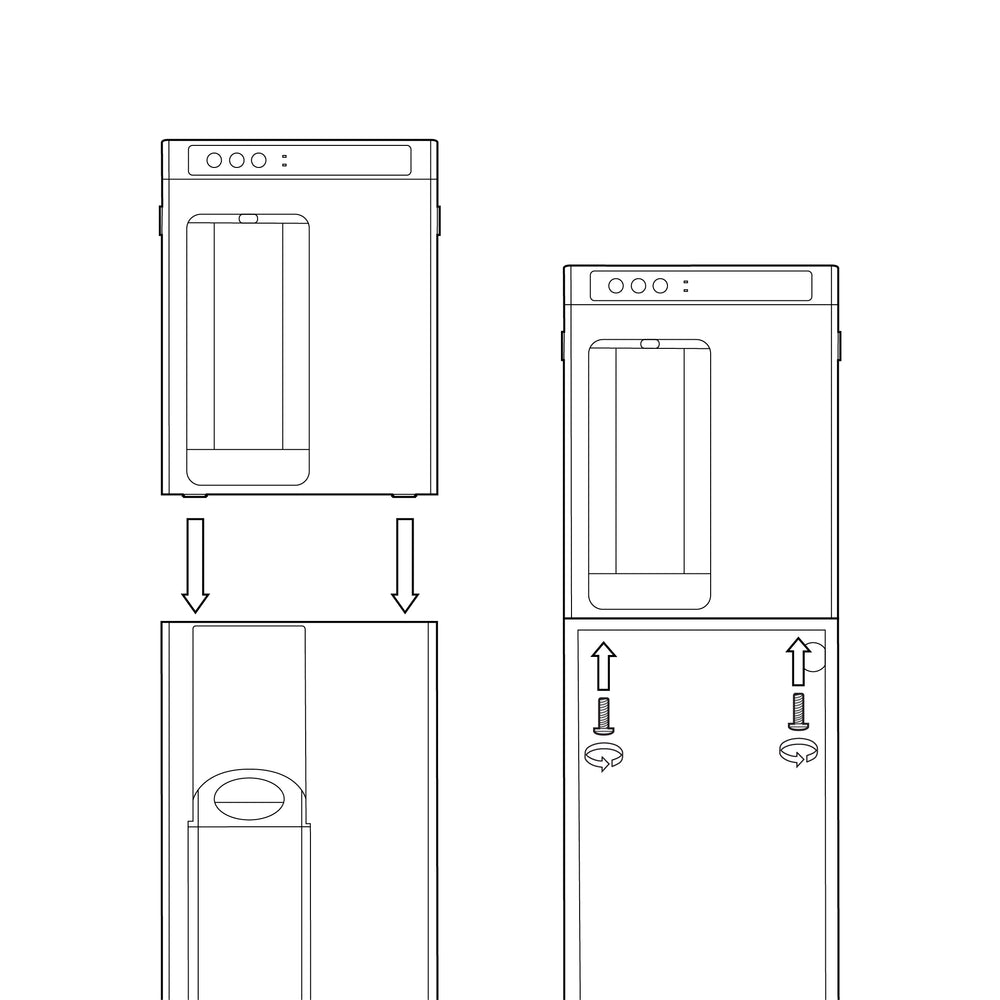

Place the unit squarely onto the base cabinet. Secure the unit from inside the base cabinet using the three supplied screws, screwing into the feet of the unit. Do not screw into the rear left foot

3

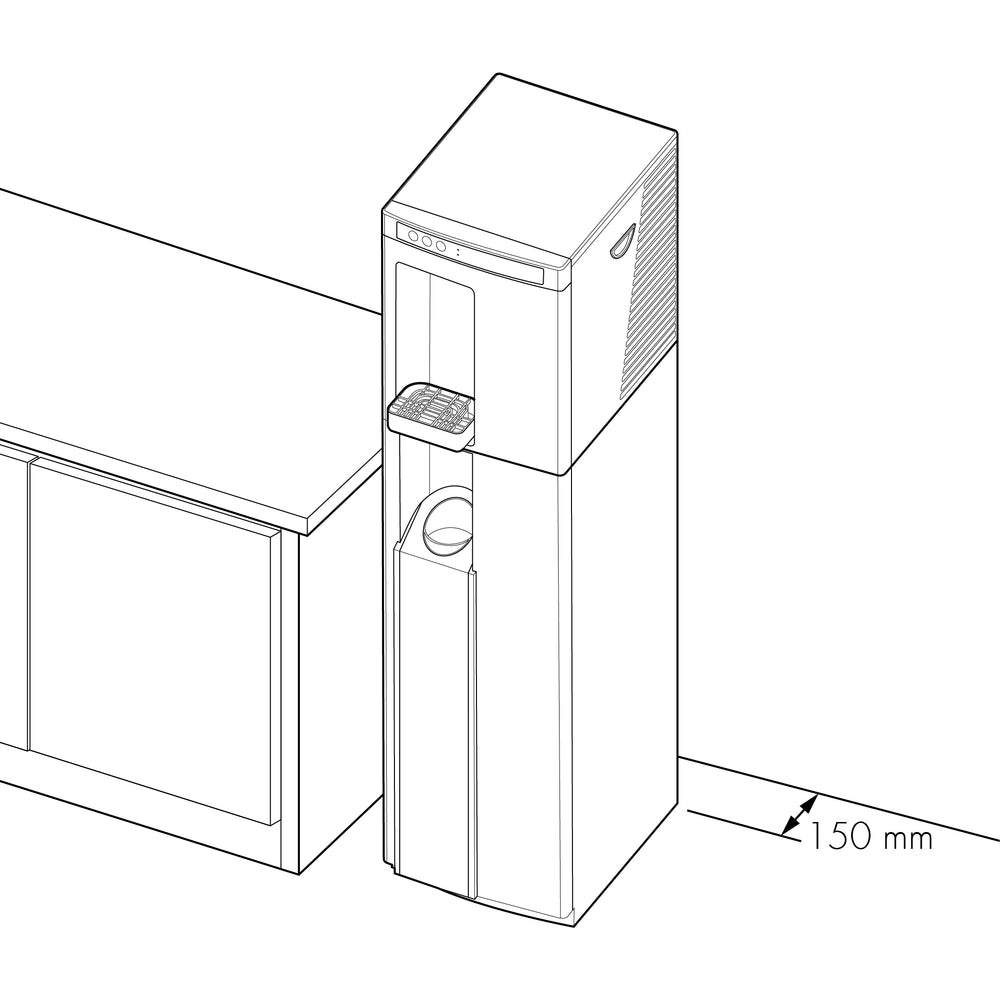

Position the unit in the desired location, ideally against a wall and away from areas of egress. Allow 150mm (6") of clearance at the rear of the unit for ventilation.

4

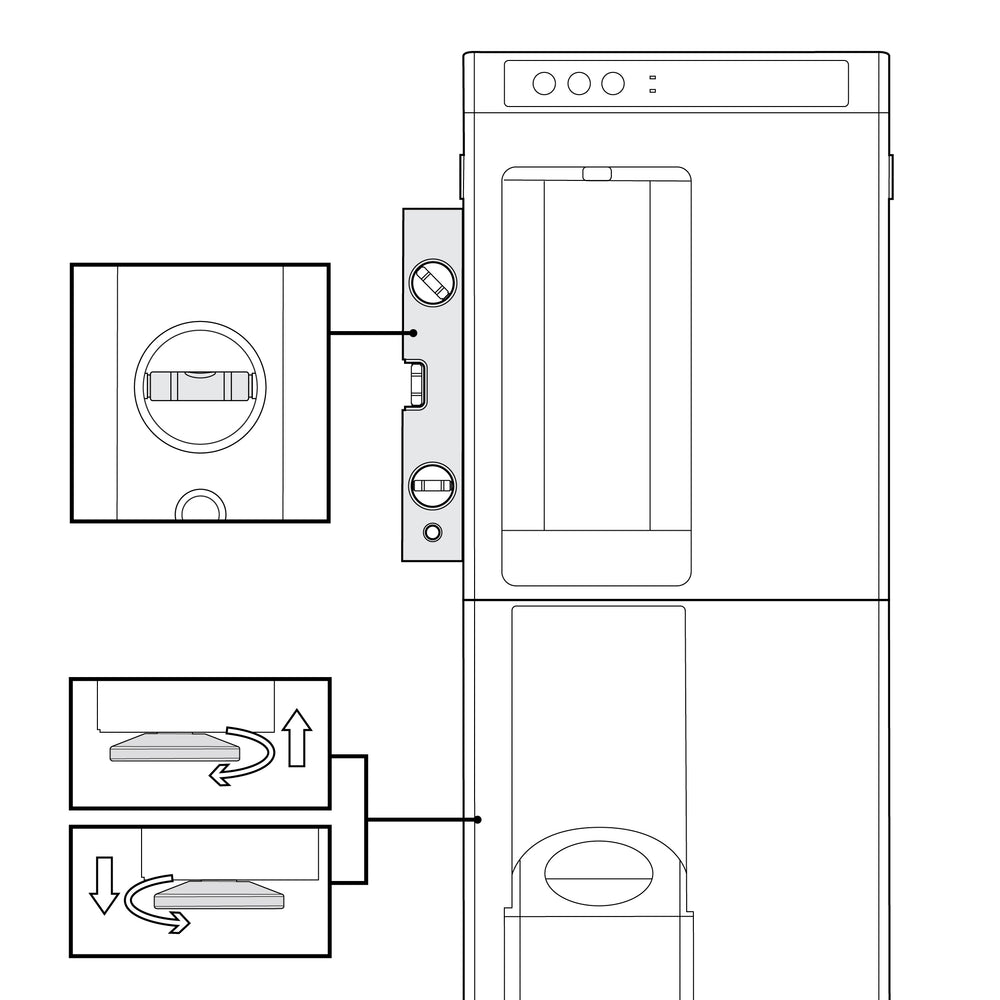

Check the unit is level. Adjust the feet of the base cabinet if needed.

5

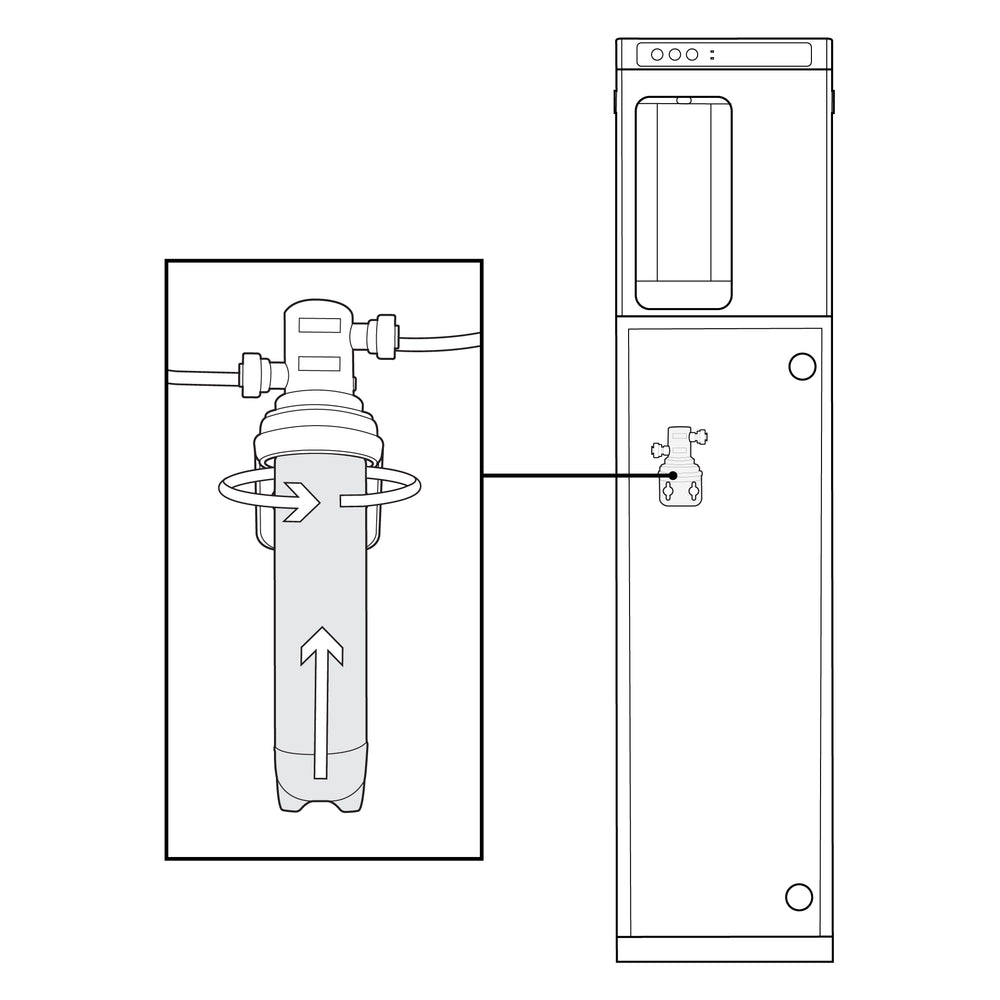

Fix the filter head in an accessible position inside the base cabinet using the pre-drilled holes. Ensure there is sufficient space below to install the filter. We recommend purging the filter cartridge to waste before fitting it to the filter head.

6

Using 1/4 inch tubing, connect the outlet option of the filter head to the appliance using the push-fit connections.

7

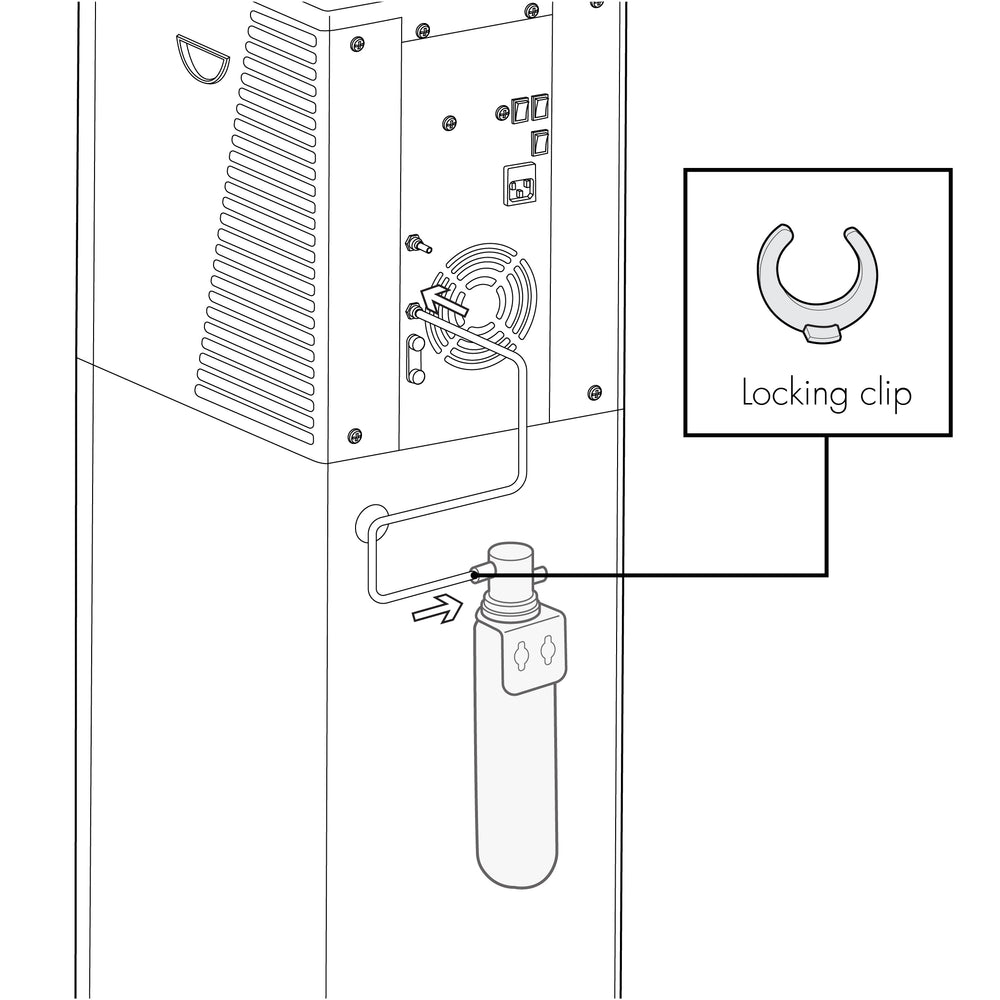

Install the water block. Use the supplied key to set the water block pointer to "2". Do not leave it at setting 8. Failing to do so will invalidate the warranty for that unit.
Vertical orientation recommended, where possible

8

Then connect the inlet option of the filter head to the mains water supply, through the water block. Use locking clips on each connection for security.

9

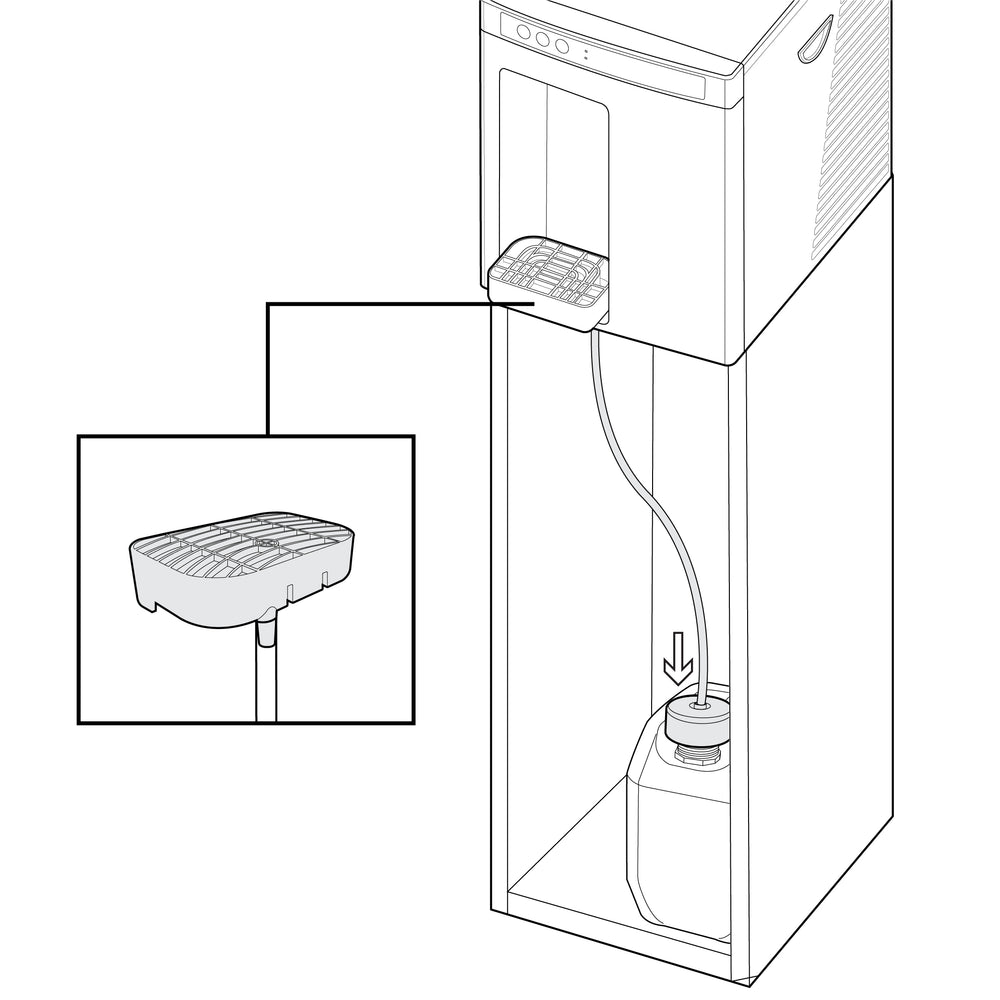

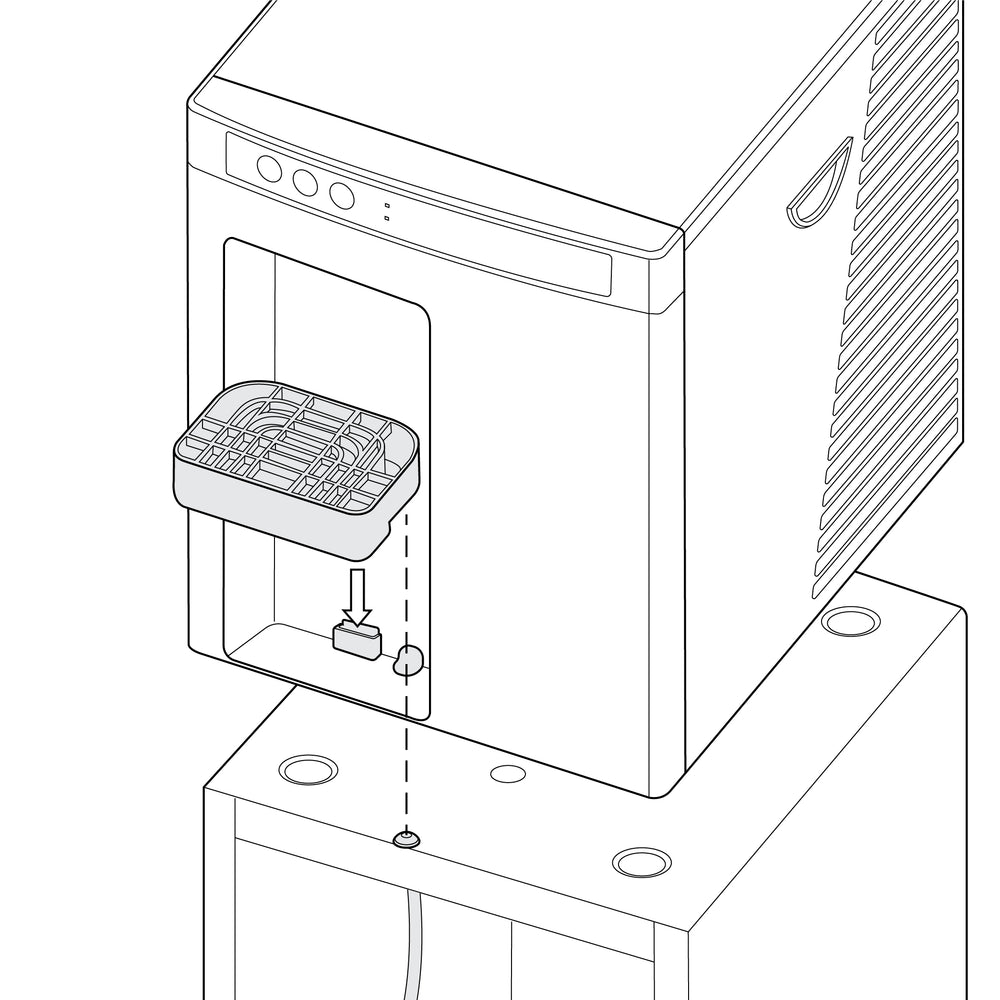

If a waste connection is required, replace the drip tray with the included waste drip tray with spigot. Ensure the spigot feeds through the grommet on the roof of the base cabinet. Install the drip tray by slotting it into the central channel and pushing it down into place.

10

If you have a waste container, place it within the base cabinet. Connect the drainage tubing into the top of the waste water container. If using mains waste, connect the drainage tubing directly to the waste outlet.

11

If you have a sparkling model, complete the CO2 installation section below before moving on to the next step.

12

Turn on the water supply.

13

Connect the unit to the electricity supply. Do not turn on any of the rear switches yet. You should hear the direct chill system filling up.

14

For sparkling models with CO2 connected, purge the air from the carbonator by pressing and holding the sparkling water dispense icon for 10 seconds. Then turn on the carbonation switch on the rear of the unit.

15

For hot water models we must commission the hot tank. Double press and hold the 'Hot' icon to start filling the hot tank. Continue filling until water flows from the outlet.

16

Press and hold the 'Chilled' icon until you see water dispensing from the outlet.

17

You can now turn on the hot switch and cold switch on the back of the dispenser. The chilling system and hot tank is now fully active.
Please note, CSH units may not have a cold switch.

18

Allow the dispenser to stand for approximately 1 hour for the initial chilling/heating process to complete.

19

Flush water through each dispense option by pressing the dispense icons until water is dispensed. Ensure everything functions correctly.

20

We recommend that the unit undergoes a sanitisation procedure prior to first use. You can follow the instructions below. Your unit is now ready for use.

CO2 bottle installation - sparkling models only

1

This operation must only be carried out by trained staff.

2

Unpack the CO2 Regulator and fit elbow fitting to spigot outlet.

3

Make sure the regulator is off by twisting the top knob anti-clockwise before attaching to the CO2 bottle. Do not overtwist.

4

Attach the regulator to the disposable CO2 bottle, ensuring the small pressure relief vent in the stem is facing away from you or anyone else. Hand tighten securely.

5

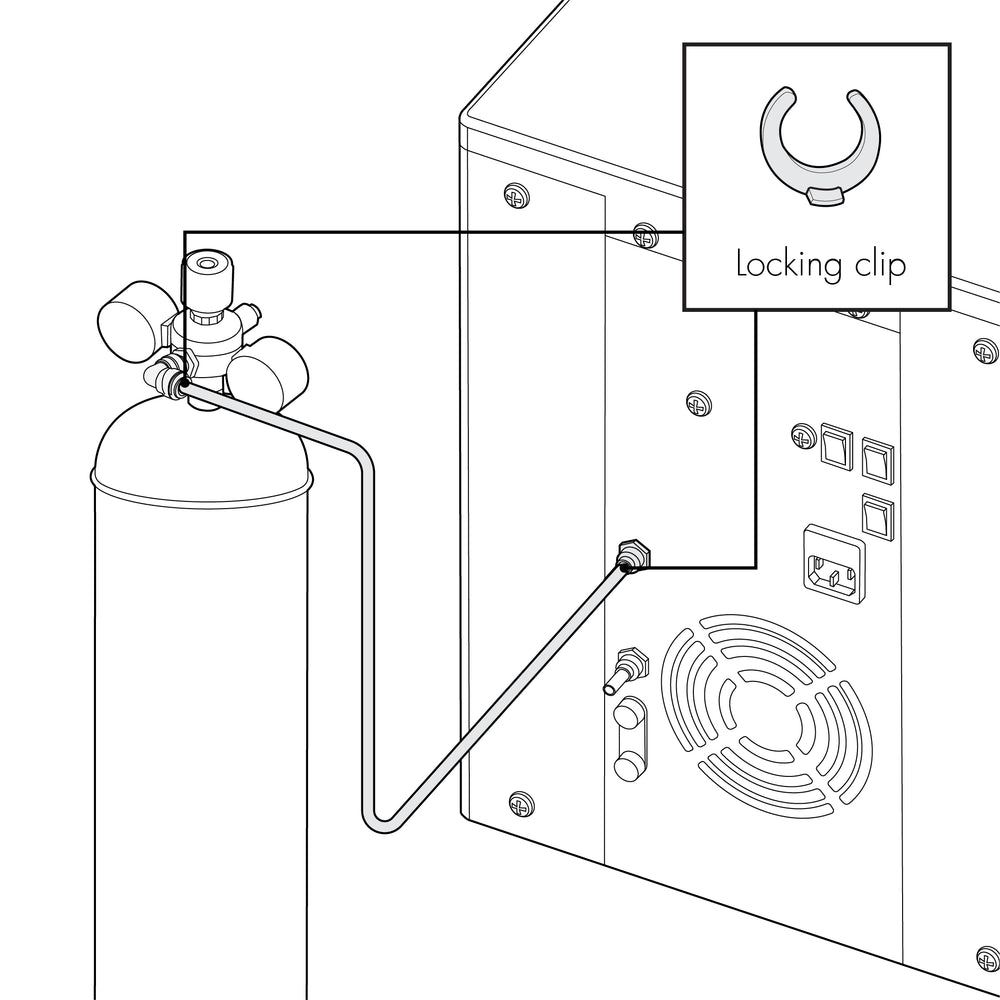

Connect the assembled CO2 bottle and regulator to the CO2 inlet using a ¼” pipe. Use locking clips on each connection for security.

6

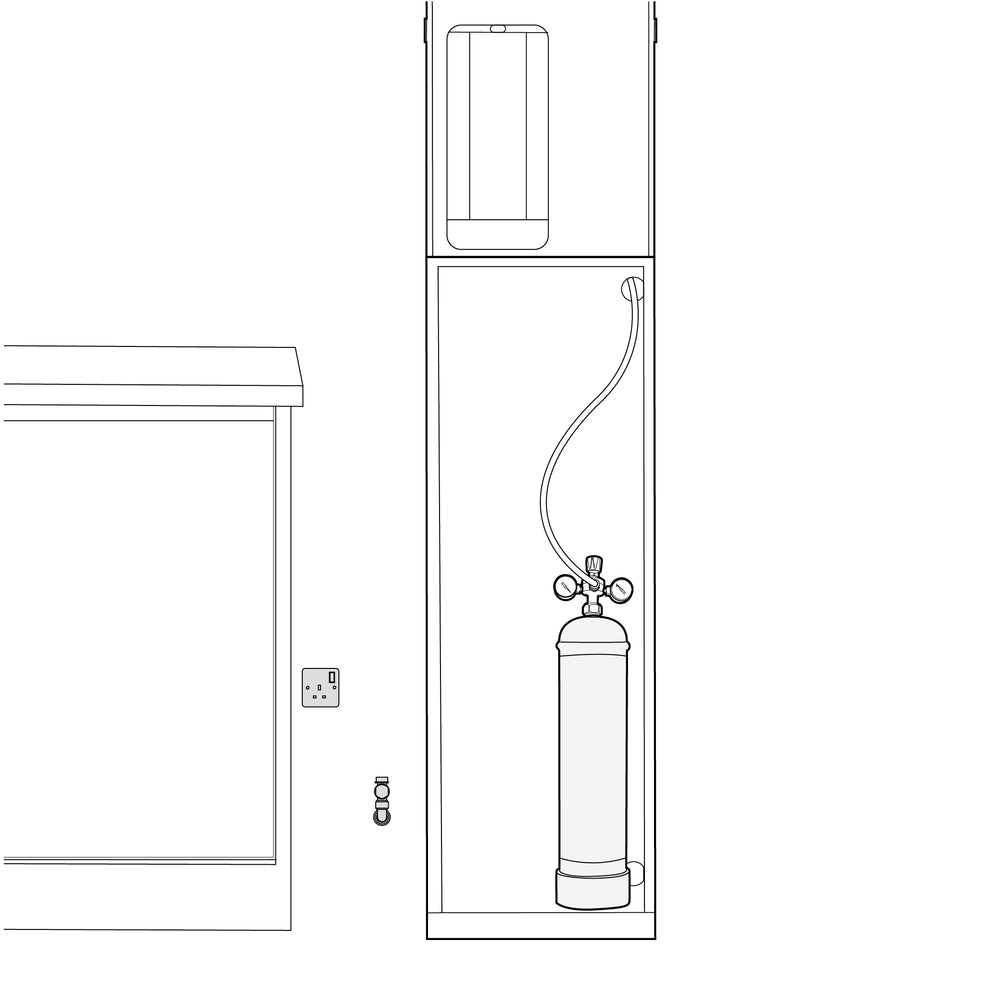

Stand the cylinder upright in a suitable location.

7

Set the CO₂ pressure on the gauge by manually turning the top knob until the gauge reads 3.5 - 4 bar (58 PSI). Do not exceed 4 bar pressure.

Control panel

Model shown with chilled, sparkling and hot water options. Other models may vary.

Illuminated indicators

Chilled circuit indicator: When illuminated, the chilling system is powered.

Sparkling mode status indicator: When illuminated, the carbonation circuit is powered.

Hot mode status indicator: When illuminated, the hot tank circuit is powered.

How to dispense water

  • To dispense water press desired water option icon and hold. Release to finish dispensing.
  • For hot water double press and hold hot water icon.

Maintenance & cleaning

Sanitisation guide

The product is supplied from the factory in clean condition, but we recommend that a sanitisation procedure is carried out at the point of installation, according to the sanitisation instruction below. We recommend repeating the sanitisation every 6 months.

Failure to use sanitising materials and processes approved and/or recommended by Borg & Overström could invalidate your warranty.
Contact us for more information

You will need

  • Measuring jug
  • Protective gloves
  • Hydrogen Peroxide (H202 3%) food safe sanitising solution recommended
  • Service filter cartridge
  • Sanitising wipes
  • Water filter

1

This operation must only be carried out by trained staff.

2

A sanitisation procedure is recommended every 6 months.

3

Turn off incoming mains water.

4

Briefly press chilled dispense button to release internal water pressure from the unit.

5

Remove the existing filter.

6

Use hand gel and put on protective gloves.

7

Add 25 ml (approx 1 US fl oz) of Hydrogen Peroxide (H2O2 3%) sanitising solution to a clean and empty service filter cartridge.

8

Connect to filter head.

9

Turn on incoming water, allow the service filter cartridge to fill.

10

Dispense water using the chilled button. Repeat with sparkling & ambient water buttons. Do not dispense water through the hot dispense option.

11

Leave the solution inside unit for sanitisation to take effect (minimum 5 minutes) while thoroughly cleaning the dispenser externally. Turn off the dispenser to allow cleaning of the control panel.

12

Pay particular attention to the dispense faucet and the push button controls. For this use an External Sanitiser and Sanitising Wipes.

13

Clean the drip tray. If a Waste Overflow System is fitted, empty this and flush through with a small amount of sanitisation fluid if needed.

14

Wipe any cosmetic marks as needed. For this we recommend the use of warm soapy water.

15

Reconnect the power and switch on the dispenser.

16

When the external cleaning is complete, flush 10L (approx 4 1/4 US Pt) of water through each dispense option (Chilled, Sparkling, Ambient).

17

Turn off water and briefly press chilled dispense button to release internal water pressure from the unit.

18

Remove the service filter. Retain service filter for reuse.

19

Fit new filter and turn on incoming water supply.

20

Pre-flush the new filter to waste using the chilled button until 5L (approx 2 US pts) of water has flushed through. Repeat this through all dispense options. Your dispenser is now ready to use.

Care and maintenance of dispenser finish

The finishes are typically low-maintenance and retain their look with minimal effort. However regular cleaning and maintenance will ensure longevity and aesthetic appearance.

The appliance should have the lens cleaned once a week minimum using screen cleaner – ensure unit is off during cleaning.

For best results polish the dispenser with a soft, clean cloth as necessary, as soon as signs of dirt or smudging appear. Weekly cleaning with damp cloth using mild soap and water is recommended to maintain shine and remove fingerprints. Dry and polish with a soft cloth.

WARNING: Improper use of cleaners and sterilizers or exposure to strong chemicals can cause corrosion, staining and discolouration. Avoid abrasive or harsh cleaning agents that can damage the finish.

Please note that surface contamination and the surrounding environment can accelerate staining and discolouration e.g. marine environments where salt is present or places with high humidity.

Advanced troubleshooting

Troubleshooting

Fault/Issue

Possible cause

Suggested action

No water dispensing

Power supply turned off (Icons on touch panel off)

Check the power supply has been fitted properly and turned on.

Water isolated from the unit

Check water inlet supply is turned on.

No hot water dispensing due to airlock in dispense pipe work.

Unblock/replace hot water pipe and hot vent pipe.

No hot water dispensing due to limescale build up inside hot tank

Replace tank.

Water isolated from unit

Check water inlet supply is turned on.

“Leak detector” (if fitted) tripped off (and tank empty).

Disconnect the power and water supply, reset the unit (check for leaks).

Chilled tank frozen

Allow the unit to thaw and thoroughly inspect to ensure it is undamaged. No water leakage allowed to contact the mains switch or mains inlet coupler.

No sparkling water

No CO2 pressure

Check CO2 bottle, regulator and non-return valve. Supply pressure should be 4bar (58psi), replace as necessary.

Carbonation System switched off.

Switch on (Switch on back of the unit).

Pump Feed Solenoid Valve

Check function/condition and repair/replace accordingly.

Carbonator Tank over-pressurised with CO2.

1. Switch the Sparkling System off.
2. Shut off CO2 supply.
3. Press the Sparkling Water button to releaseCO2 from carbonator.
4. Switch the Sparkling system on.
5. Check pump operation is running normally.
6. Wait for the pump to stop running.
7. Re-open CO2 supply.

Poor quality carbonation

Incorrect CO2 pressure

Check CO2 bottle, regulator and non-return valve. Supply pressure should be 4bar (58psi), replace as necessary.

Air in carbonator tank

Purge the carbonator tank. Follow instructions below.

Residue in carbonator tank

After prolonged use, a surface film can develop within the carbonator tank. Refer to cleaning and sanitising instructions.

Water not sufficiently chilled

Dispense 500ml of sparkling water and allow cooling cycle to run and complete

Drinks not chilled

Insufficient cooling air flow.

Check that the condenser is not blocked. Check cooling fans are running.
Ensure the ventilation requirements have been actioned.

Compressor runs and switching off(cool/warm to touch) - Thermostat
set too high.

Decrease cold thermostat set point.

Thermostat not working.

Check/replace thermostat.

Compressor runs but not switching off(hot to touch).

Please contact technical support.

Compressor only hums slightly/briefly.

Check and replace relays.

Compressor not running

Check electrical supply to compressor (mains voltage).
Check for voltage at the compressor connections.
Once the unit has cooled the chilling system will restart. If the problem persists contact technical support.

Compressor running continuously

Contact Technical Support

Chiller failure

If the compressor and fan are running but no cooling is present, contact technical support.

Water lying at bottom of unit

Loose fitting water connection

Contact your distributor.

Hot water temperature not hot enough

Mid heating cycle

Allow up to 5 minutes for the hot tank to reach temperature.

Hot temperature probe damaged

Check hot tank temperature probe and replace if necessary

Hot tank is turned off.

Ensure hot tank is full, and turn on the hot switch to activate heater element.

Water demand too high

See product specification.

Heating element not working

Check and replace hot tank as required.

Continuous or incorrect dispense

Excess water on lens on control panel

Ensure you keep lens clean and clear of liquids.

Warning beep sequences

In the event of the dispense icons flashing, press any of the dispense options to get an audible alarm.

Internal leak sensor
Water inside unit. Loose water fitting connection.

Waste kit full
Empty waste overflow tank.

Draining the dispenser

If you are decommissioning a unit, or descaling the hot tank you must first drain the unit.
To do so proceed with the following steps:

1

Turn off the water supply.

2

Turn off all switches on the back of the unit.

3

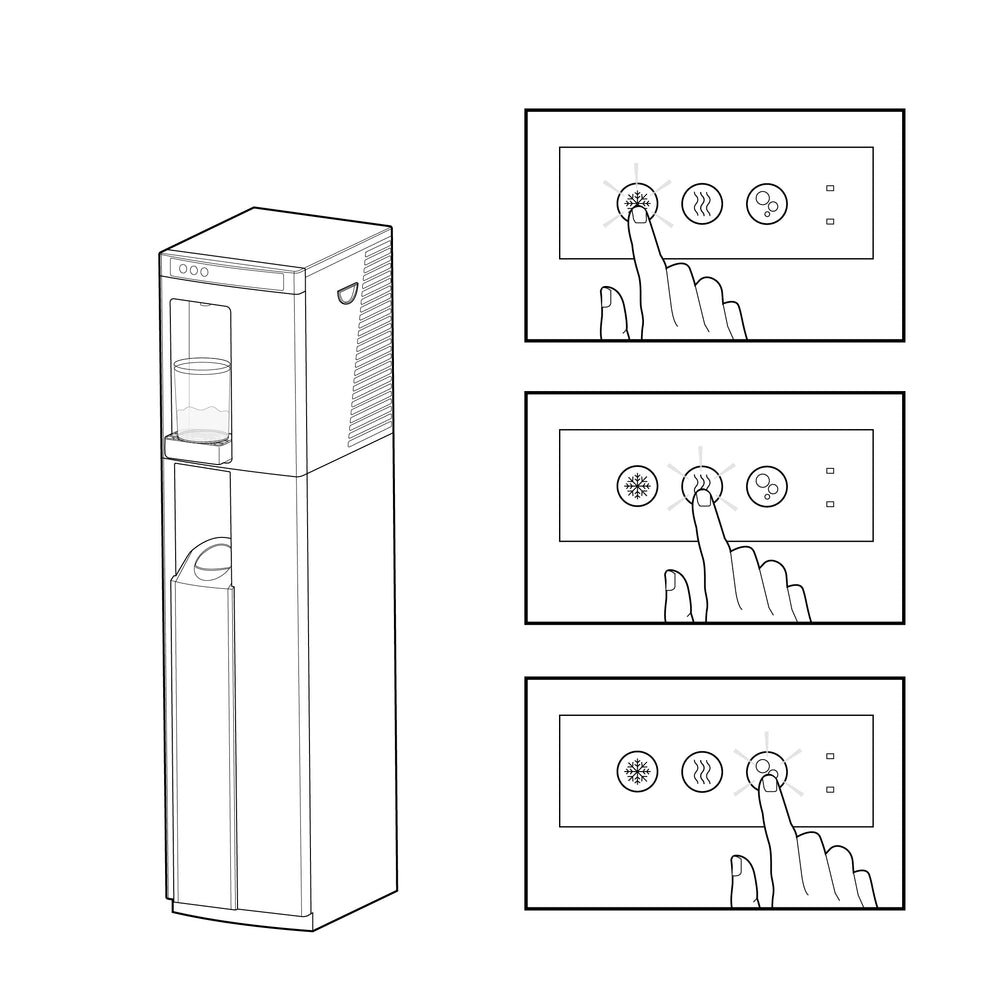

Dispense from all dispense options until water no longer appears.

4

Turn off and remove the power supply.

5

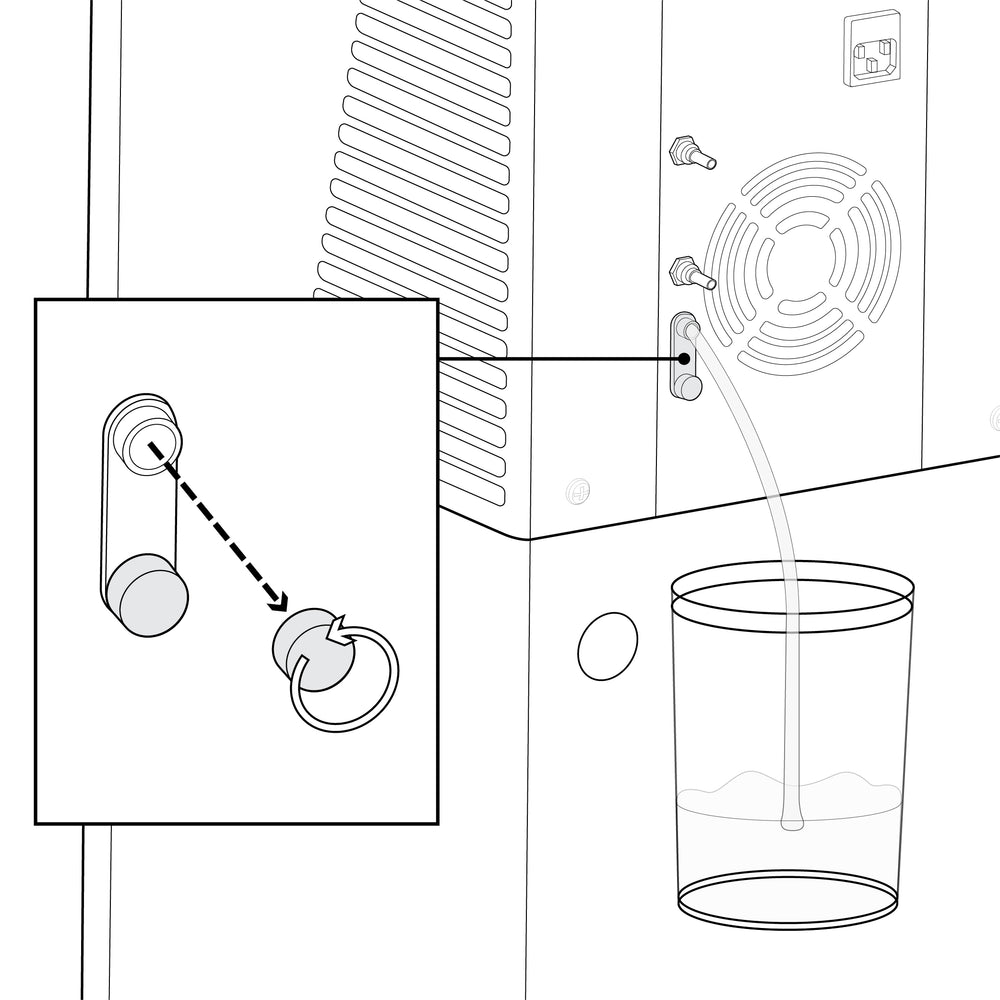

Remove the drain port caps and empty into a bucket.
Caution: hot water may spill from the hot tank during this operation.

Technical Information

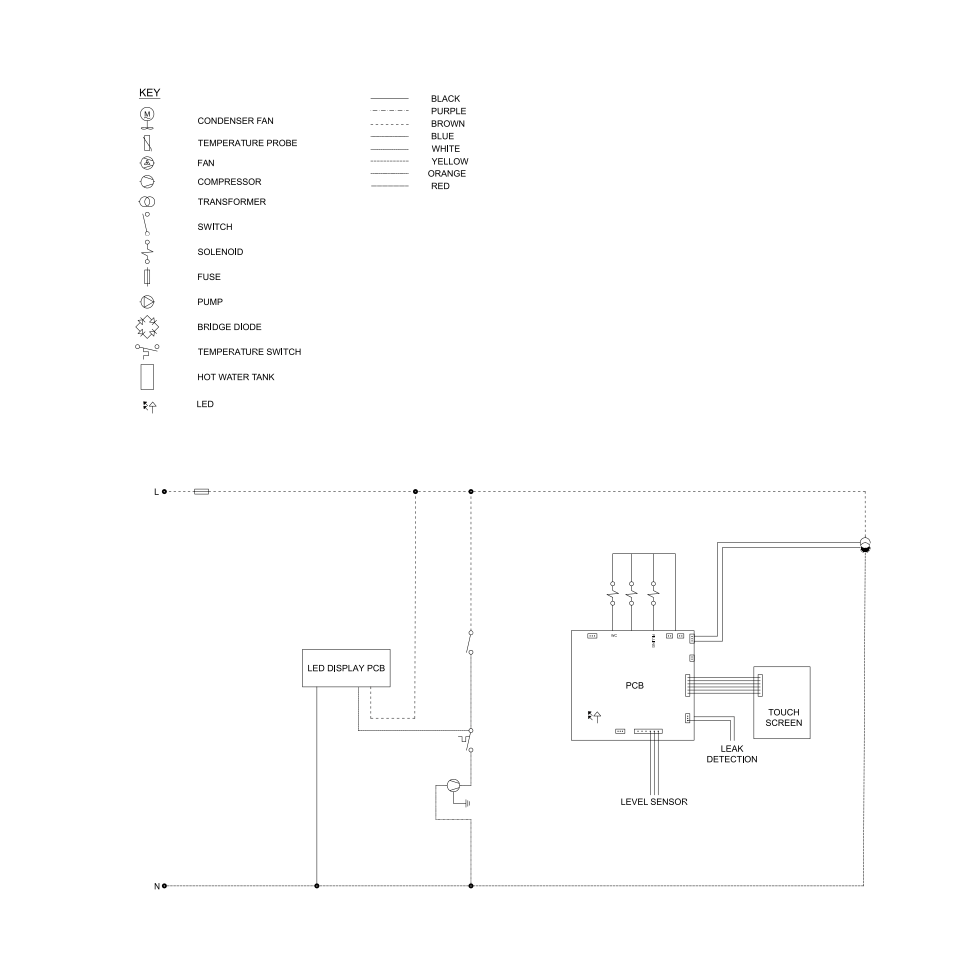

B4.2 Chilled & Ambient circuit schematic

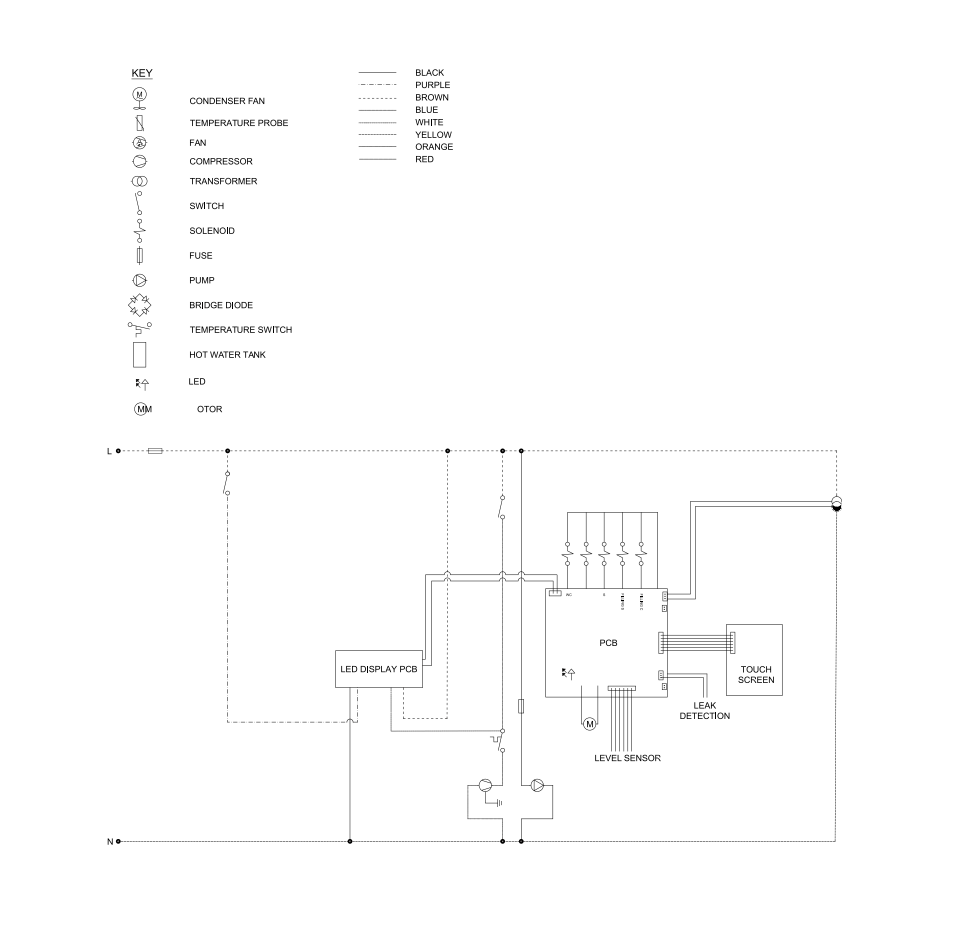

B4.2 Chilled, Sparkling & Ambient circuit schematic

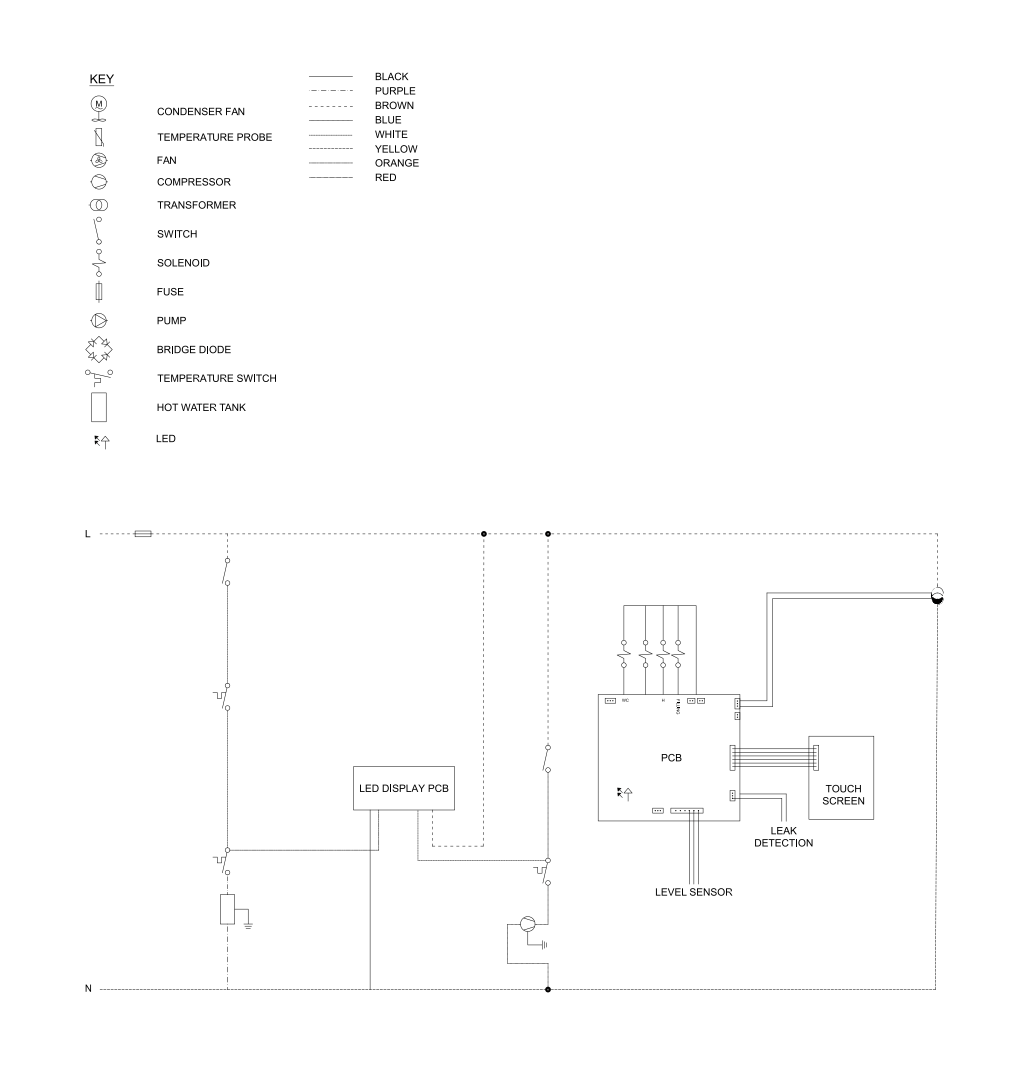

B4.2 Chilled, Ambient & Hot circuit schematic

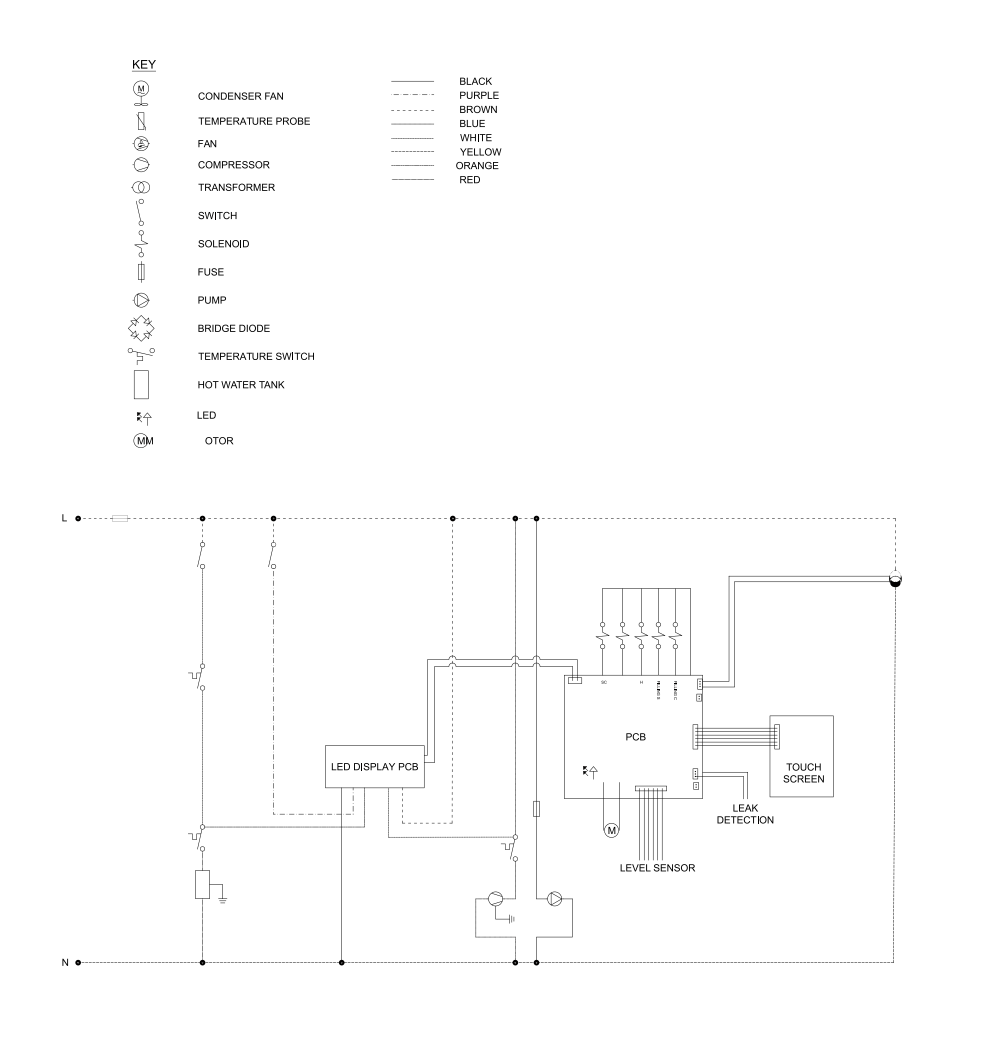

B4.2 Chilled, Sparkling & Hot circuit schematic

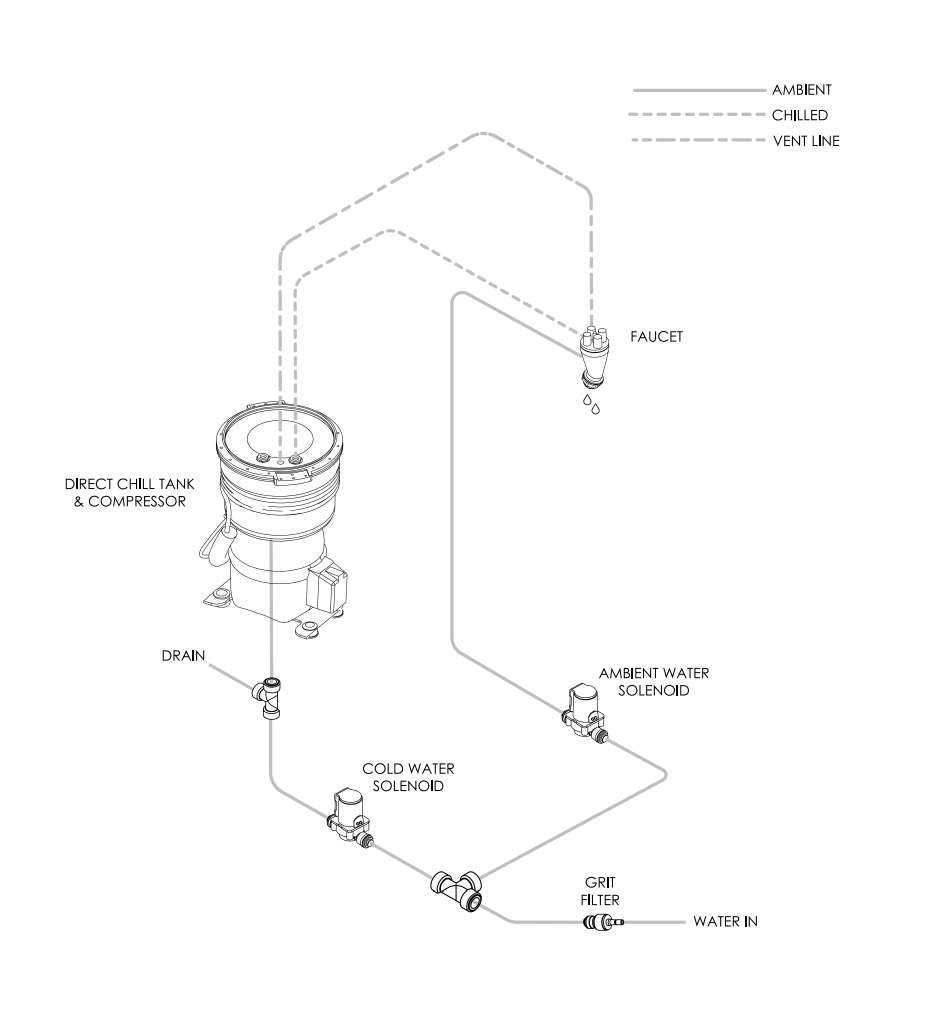

B4.2 Chilled & Ambient water pathway

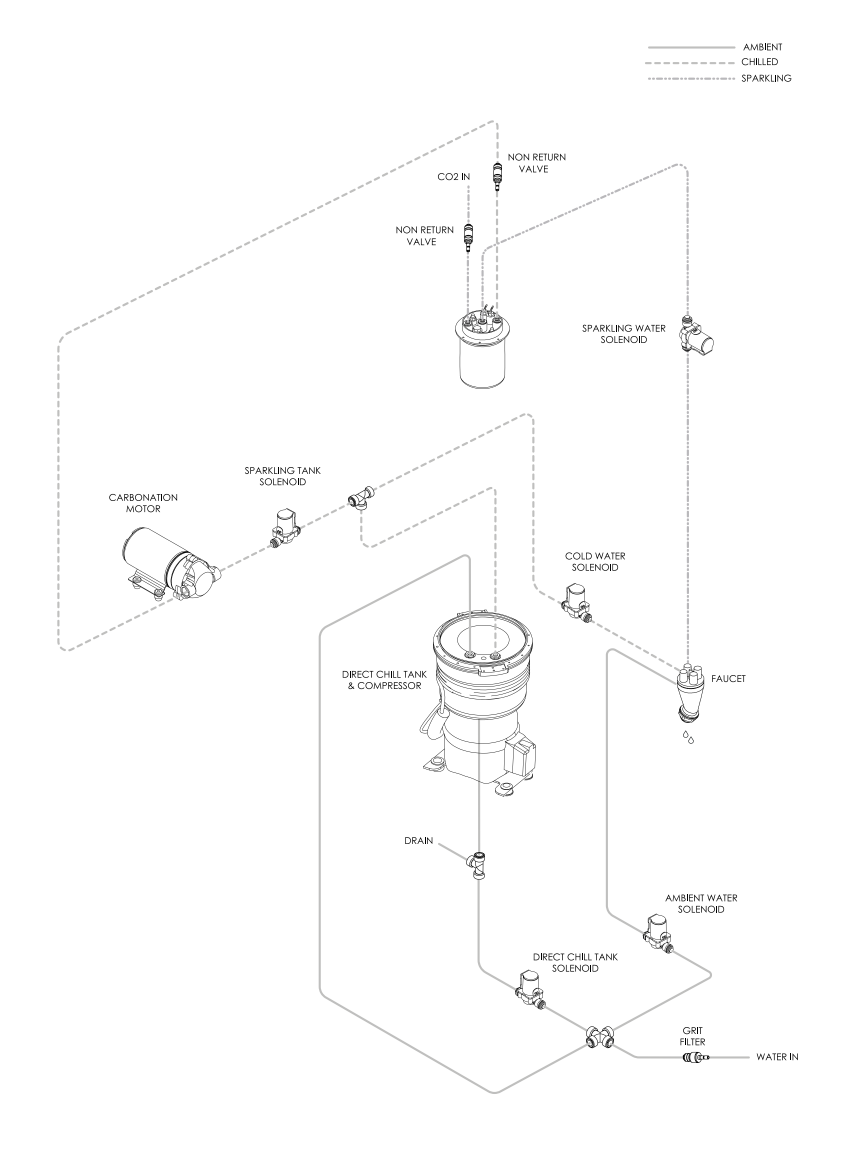

B4.2 Chilled, Sparkling & Ambient water pathway

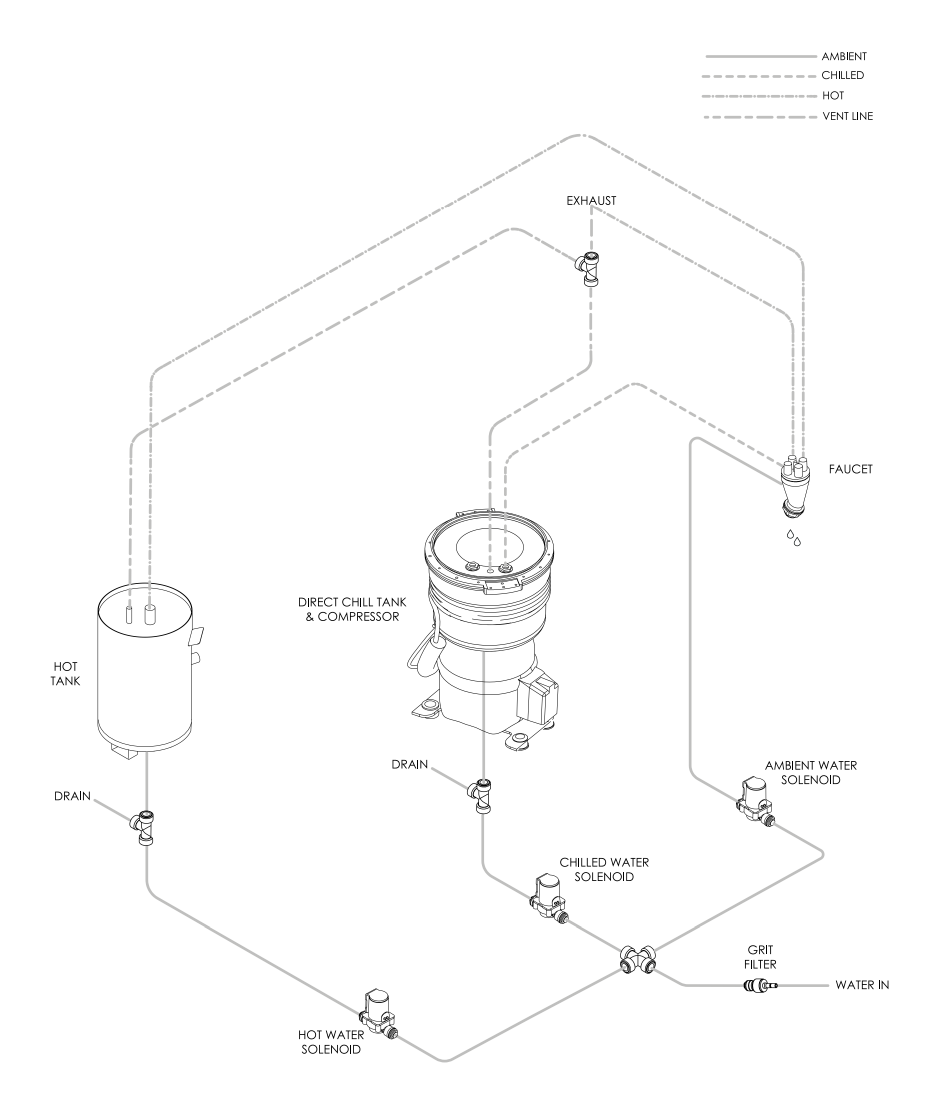

B4.2 Chilled, Ambient & Hot water pathway

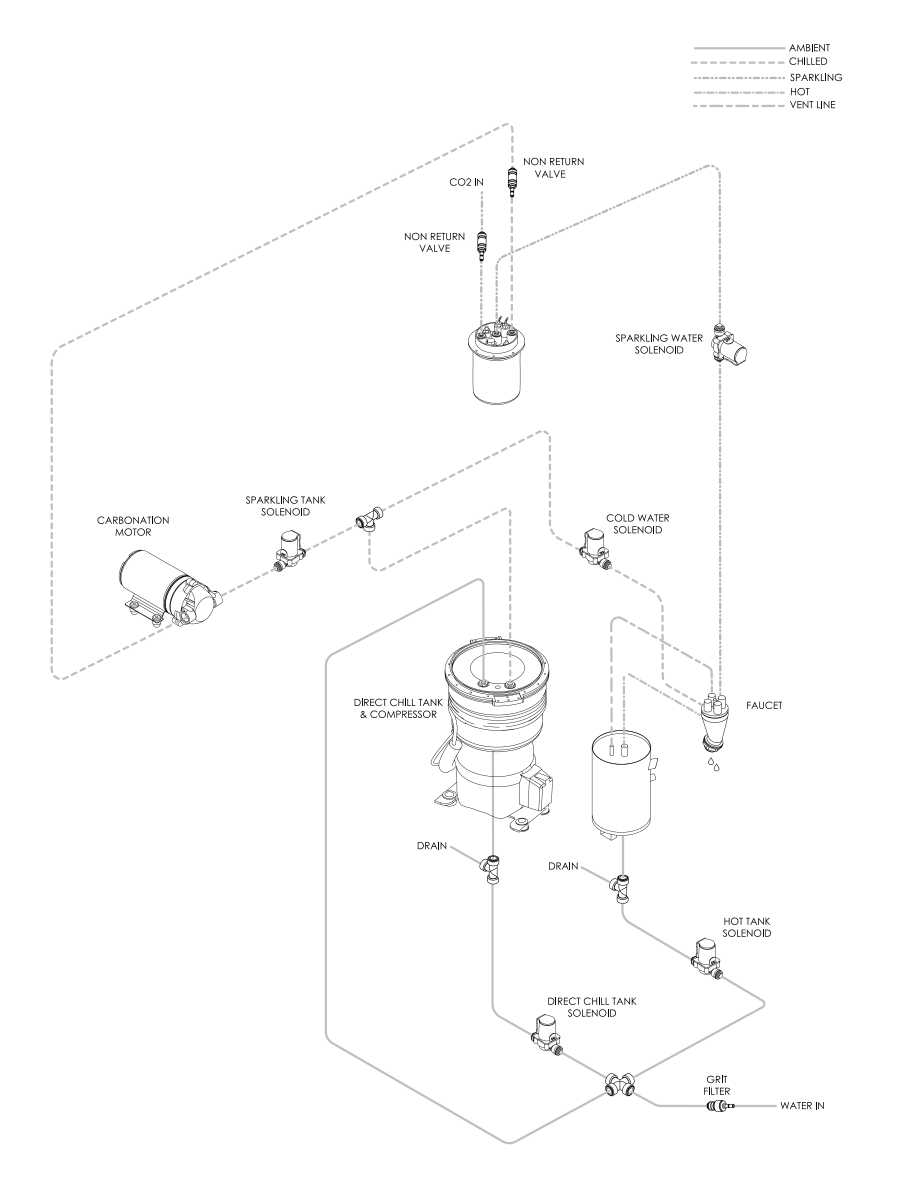

B4.2 Chilled, Sparkling & Hot water pathway

Spares

Dispenser exploded parts diagram

Exploded diagram for B4.2 CHS shown, other models may vary.
Not all items labelled, contact our support team for a part that isn't listed.

Spare parts

Part no.
Description
CA
CSA
CAH
CSH
194121
1/4" Grit Filter
132445
1/4" SCV & Grit Filter
173255
105c Hot Tank Over-heat cut out
174391
110v/230v 24vdc 1.7A Power Adapter c/w Connection Adapter
131426
2-Port Drainage Outlet
173266
92C Hot Tank Thermostat Sensor
171268
B3.2/B4.2 Main PCB Case Assembly
171265
B3.2/B4.2 Touch Dispense Screen PCB
171269
B3.2/B4.2 Touch Icon Illumination Diffuser (LGP)
166986
B3/B4 Hot Tank with 90/105C Sensors 230v
166987
B3/B4 Hot Tank with 92/105C Sensors 110v
173272
B3/B4 Level Control Module
191003
B4.2 Chilled & Ambient Touchscreen Control Panel – Borg & Overström
191004
B4.2 Chilled, Hot & Ambient Touchscreen Control Panel – Borg & Overström
191006
B4.2 Chilled, Hot & Sparkling Touchscreen Control Panel – Borg & Overström
191005
B4.2 Chilled, Sparkling & Ambient Touchscreen Control Panel – Borg & Overström
174351
B4.2 Cooling Fan
174372
Carbonation Pump 24v for B3.2 & B4.2
193220
CO2 Single Gauge Regulator
173264
Cold Thermostat B4.2
172144
Danish 2.5m IEC Power Cordset
175363
DC Tank Circulation Pump
174231
Electric Rocker Switch 220V/110V
172148
Euro Schuko CEE7/7 Plug to straight IEC C13 – Mains Lead (5A)
173241
HP1/4PFx1/4PFS24 Solenoid Valve
172163
IEC Fused Socket
852108
IEC Swiss Power Lead C13 1.8mtr
462325
John Guest Bulkhead Connector 1/4" Push Fit
193182
Leak Detection Kit
172223
LED Lighting Wiring Assembly (24v)
134612
Pressure Release Valve Carbonation Tank
134566
Straight Type Silicon Tube - 290mm
172152
UK 1.8m 5A IEC Power Cordset (5A)

Cosmetic spares

Part no.
Description
CA
CSA
CAH
CSH
120813
B4.2 Cabinet Door Panel Assembly - Black
120811
B4.2 Cabinet Door Panel Assembly - Silver
125839
B4.2 Drip Tray Set with Drainage - Black
125840
B4.2 Drip Tray Set without Drainage - Black
120802
B4.2 Front Panel - Black
120800
B4.2 Front Panel - Silver
115263
B4.2 Front Panel Set - Black
115261
B4.2 Front Panel Set - Silver
120803
B4.2 Indication Panel Frame - Black
123187
B4.2 Top Cover Panel Black
183246
Chrome B3.2/B4.2 Faucet Bezel (Nut)
103592
Floorstanding Base Cabinet - Black - including Alarmed Waste Kit
103910
Floorstanding Base Cabinet - Silver - including Alarmed Waste Kit

Contact support for any required spares not listed above.

Borg & Overström
Synergy House,
Fakenham Road,
Morton on the Hill,
UK
NR9 5SP

+44 (0)1362 695 006
sales@borgandoverstrom.com
